Ford Mustang 2.3 EcoBoost | Intercooler

Description

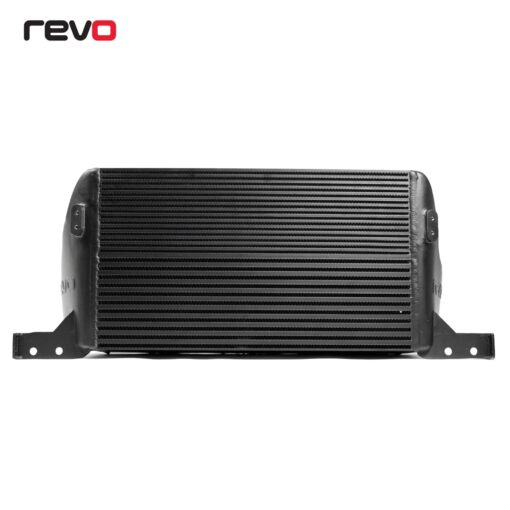

Revo Intercooler
Ford Mustang 2.3 EcoBoost

The Revo Intercooler upgrade for the Ford Mustang 2.3 EcoBoost utilises unique design features to lower intake air temperatures, minimise pressure drop and allow the engine to produce impressive power and torque increases.

The Mustang’s turbocharged 4-cylinder engine produces extreme intake temperatures that the standard intercooler struggles to cope with, especially after consecutive hard use. The Revo Intercooler combats this by directly replacing the OE part, enhancing cooling efficiency by up to 39ºC, allowing you to drive harder, for longer.

Key Features:

• Bar & Plate Core Design
• 106% Larger frontal Area
• 184% Increased core volume
• Up To 39ºC Lower AIT

Testing:

All Revo testing is done in-house by our own engineers using a 4wheel DynaPack hub dyno to ensure fair and accurate results for all vehicles tested.

The Revo Mustang Air intake was tested on an in-house, US-spec. 2.3L Ecoboost Mustang, fitted with the full Revo Stage 2 Package. Comparison runs where carried out with the stock intercooler vs the Revo intercooler

Performance Data

Showing the last of five consecutive dyno runs, the efficiency of the Revo Intercooler over the stock part is highlighted. With peak gains of +26 HP & +23NM Torque, along with increased performance throughout the entire rev range, the stock intercooler struggles to effectively function in comparison to the Revo Intercooler which remained consistent throughout.
