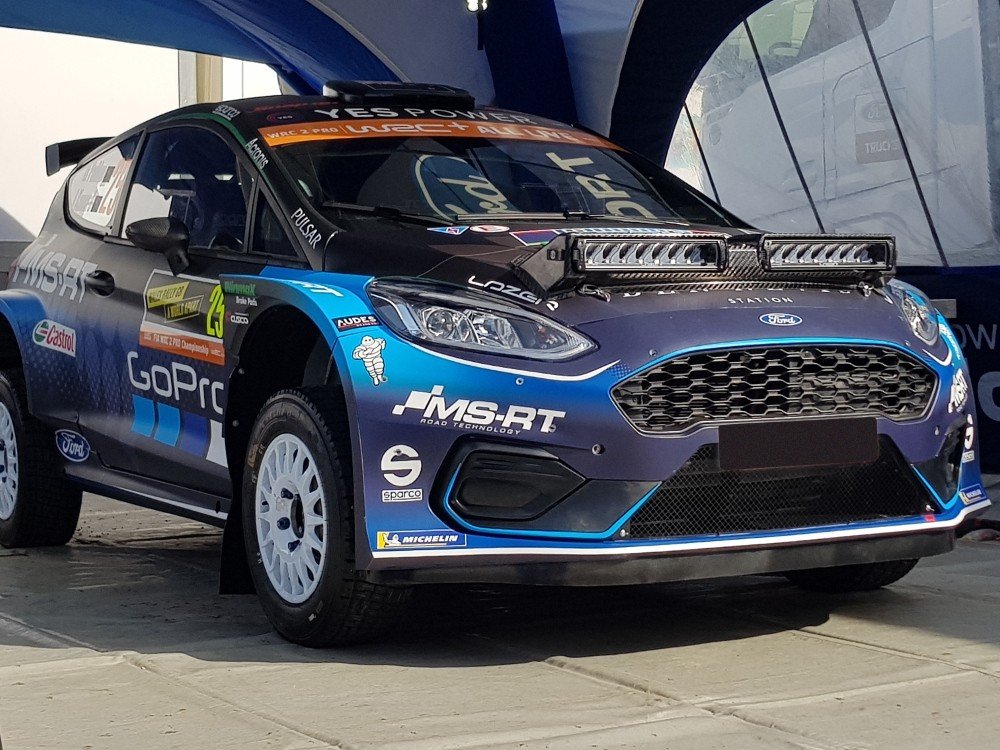

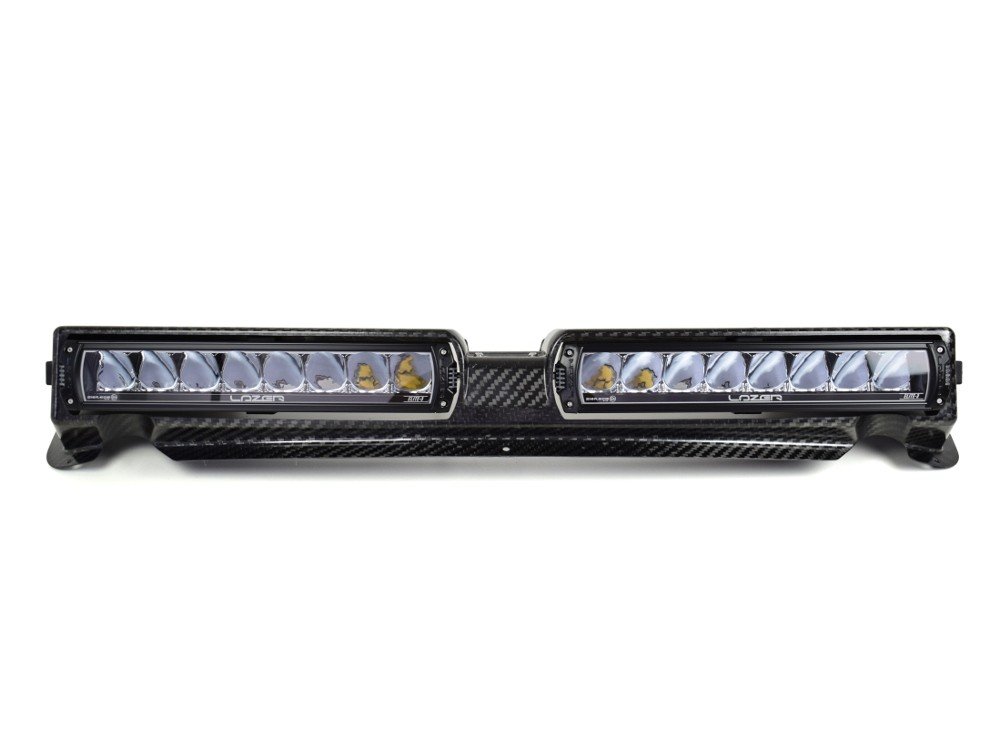

Taking rally car lighting solutions to the next level, the 2-way Rally Lamp Bonnet Pod from Lazer Lamps comprises a pair of Triple-R 1000 Elite3 high performance LED driving lights, pre-mounted within an aerodynamic, lightweight Glass & Carbon-fibre composite pod, designed and engineered to match the shape of the 2019 Ford Fiesta.
With the complete system weighing just 4.1kg, not only does the 2-way Bonnet Pod offer valuable weight-saving gains, but the lighting performance of the Triple-R 1000 Elite’s is unrivalled considering the lamps’ size and low power consumption. Moreover, the products are designed, engineered, and manufactured in the UK to the most exacting standards, and benefit from input received from the very highest levels of professional rally motorsport.

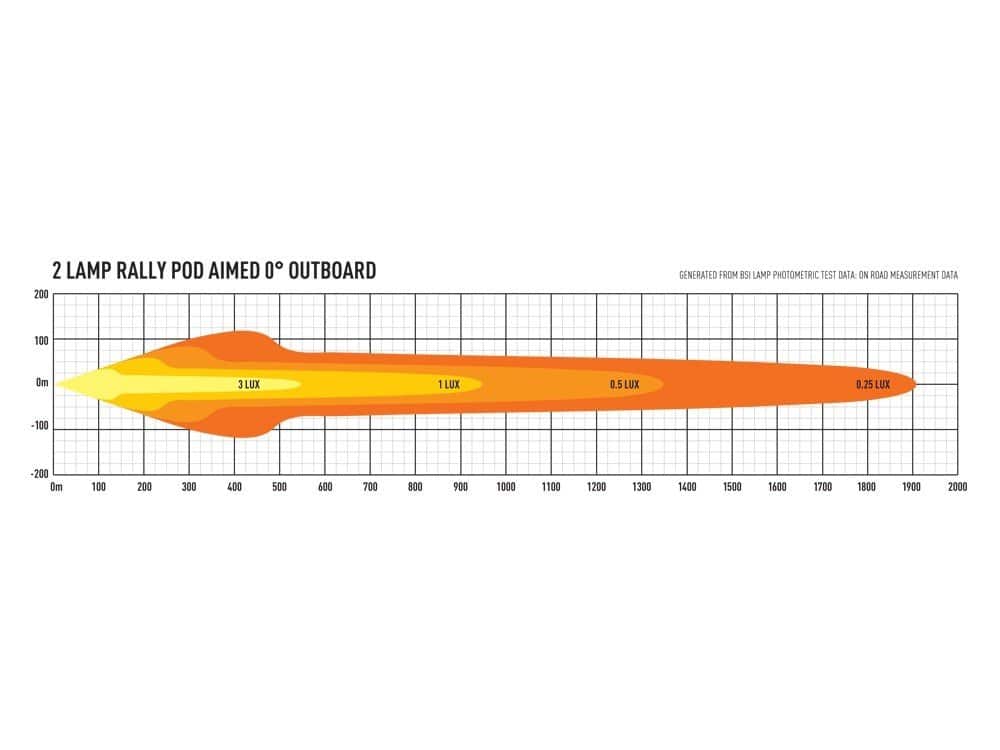

The lamps profit from E-mark certification, enabled by dual-output functionality which allows the lights to also run at a reduced output just within the limit of the road-legal regulations (ensuring compliance with some FIA regulated rally series). When operating at their full ‘E-Boost’ output levels the lights combine to produce 18,040 lumen. Through a combination of highly efficient high-intensity LEDs, advanced electronics design, and vacuum metallised long-range optics, the 1 lux line reaches to just over 950m, and with an excellent spread of light in the mid to long-range. With the colour temperature of the LEDs carefully selected at 5000k to improve sharpness and definition of the road and objects ahead, nothing has been left to chance with regards performance or build quality.

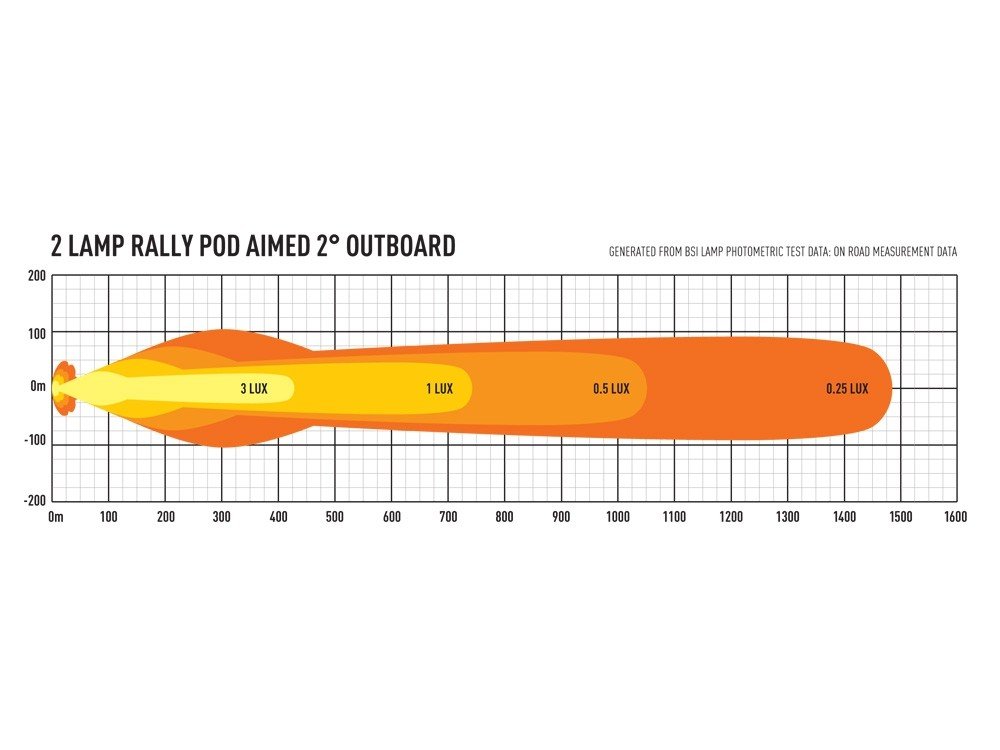

The bonnet pod, made from carbon-fibre with glass laminate layers (to ensure compliance with some FIA regulated series), comes with the lights pre-mounted. A fine-adjustment mechanism allows for quick and easy vertical adjustment of the lights +/-5deg, alongside <2deg outboard adjustment permits more left/right spread of light.
The 2-Way Rally Lamp Bonnet Pod is recommended for use with Linear-6 Elite corner lights, mounted in a horizontal orientation. A bespoke pod exists for Fiesta R5 customers, for all other customers it is recommended to mount the corner lights with our Aluminium Side Bracket Kit. Where the requirement is for corner lights mounted in a vertical orientation, we would recommend our ST4 Evolution high performance spotlights.
- Pre-mounted 2x Triple-R 1000 Elite3 high performance driving lights
- Ultra-lightweight carbon-fibre with glass laminate bonnet pod
- Optimised for Ford Fiesta – spacer kits in development for other vehicles

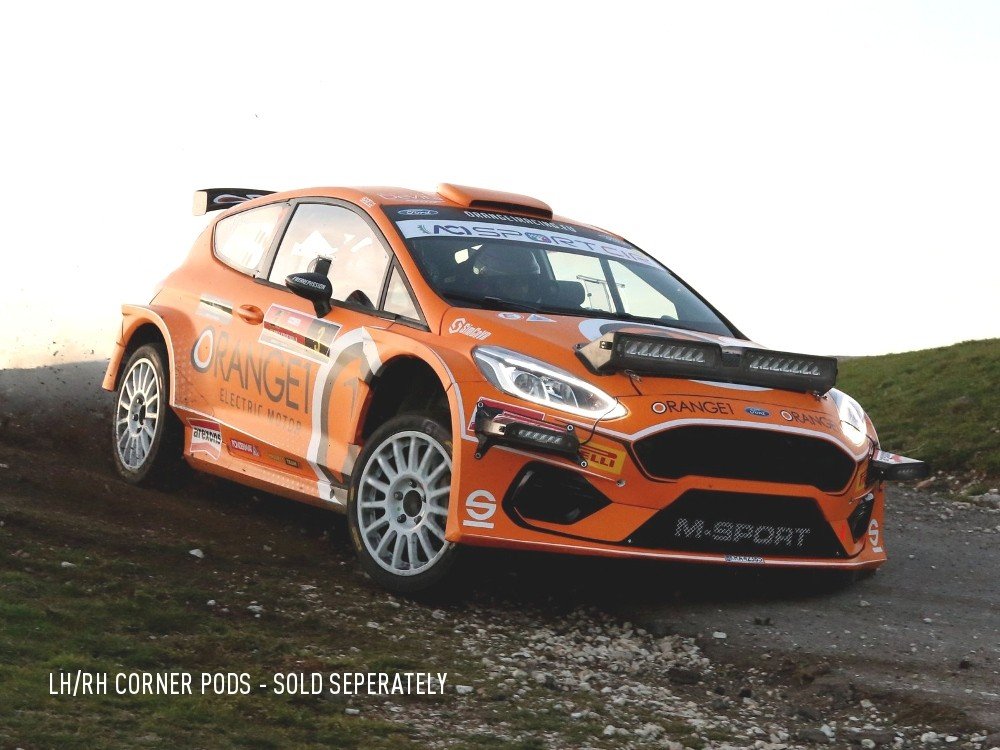

- Compatible with LH/RH Corner Pods
- Road-legal in accordance with FIA regulations (for some rally series)
- Low profile design for improved aerodynamic performance
- Fine adjustment mechanisms
- Bonnet fixtures not included
- Carefully selected LED colour temperature maximises sharpness and definition
- Electronic thermal management
- ‘Unbreakable’ polycarbonate lens
- IP67 watertight
- 5-year warranty
- Designed & manufactured in Britain

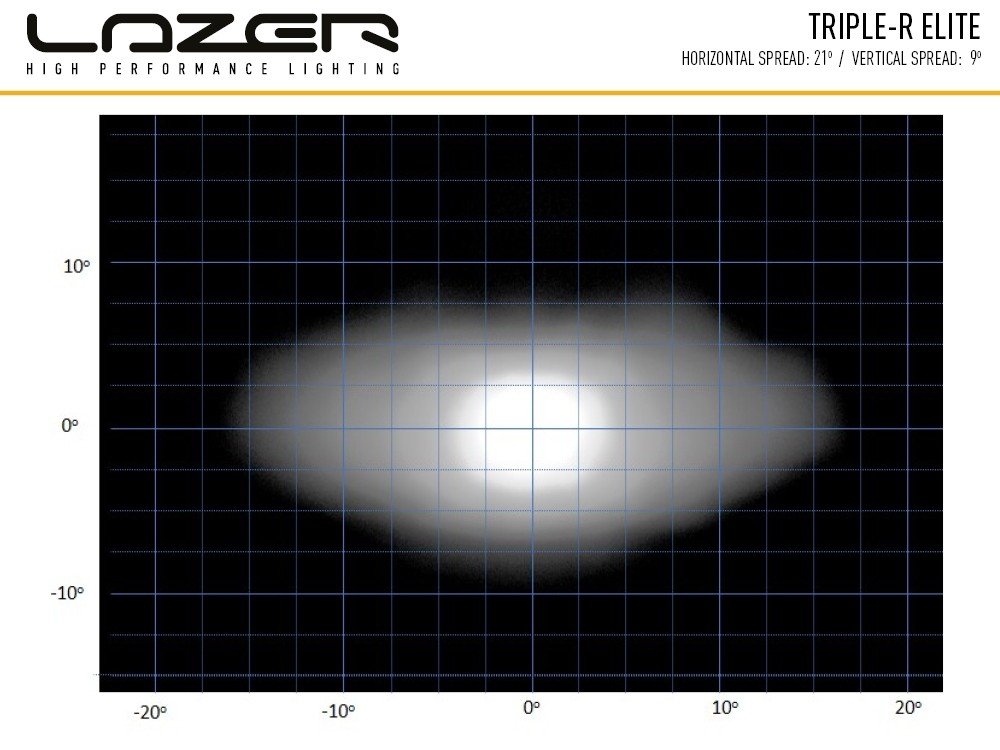

Triple-R 1000 Elite3 – in (100%) E-Boost mode:
|LED Life||50,000 hours|
|HIGH BEAM FUNCTION|
|Total Luminous Flux||9020 Lm|
|Number of High Output LEDs||8|
|Power Consumption||92 Watts|
|Current Draw (at 14.4V)||6.4 Amps|
|High Beam||ECE R112|
|0.25 lx Line||1351 metres|
|0.5 lx Line||955 metres|
|1 lx Line||675 metres|
|3 lx Line||390 metres|
