Lazer Lamps Carbon-16


What’s included:
– x1 Carbon-16 LED Lamp
– x1 Universal Single Lamp Mount (0061-SLM)
– x1 Neoprene Impact Cover

Product Code: 00C16-Comp

Shipping may take up to 1-2 weeks

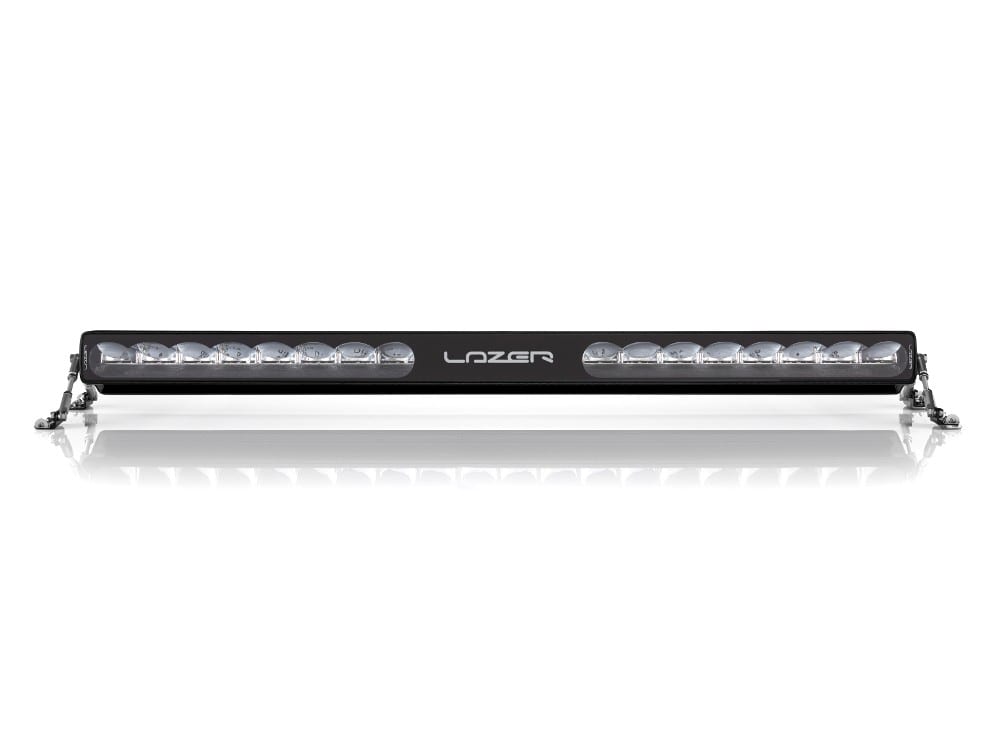

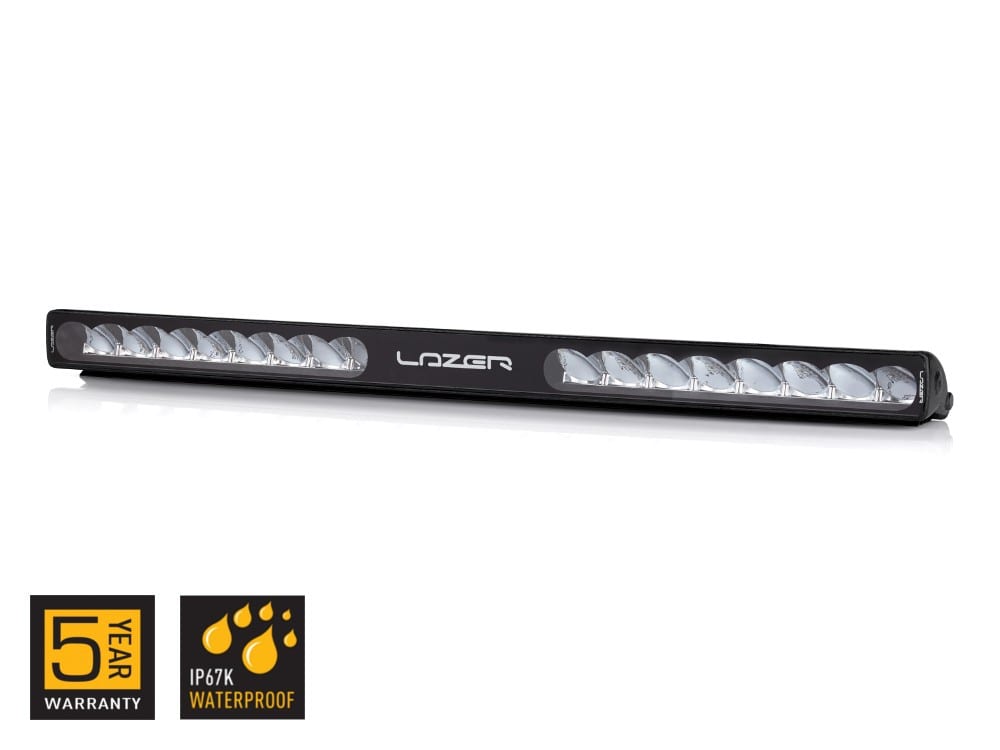

Designed as an ultra-lightweight, bonnet-mounted rally lighting solution, the Carbon-16 comprises 16 high intensity LEDs that combined with highly reflective, vacuum-metallised optics, deliver useable light (1 lux) to well over 1200m. Weighing 1.37kg, the lamp is perfect for motorsport professionals looking for every competitive advantage, but for whom specific regulations are restrictive on the total number of LEDs allowed in operation.

The high intensity LEDs in the Carbon-16 produce a perfectly homogenous ‘spot’ beam pattern that can be quickly and easily tuned to individual requirements by utilising Lazer’s range of Reeded Lenses. Furthermore, through extensive testing and feedback at the very highest levels of rally, track, and off-road motorsports, the colour temperature of the LEDs has been carefully selected to provide maximum definition and sharpness. The unique design of both the housing and internal electronics, which includes rear facing LEDs, provides greater light utilisation, reduced scatter, and better distribution of light including during heavy braking and acceleration.

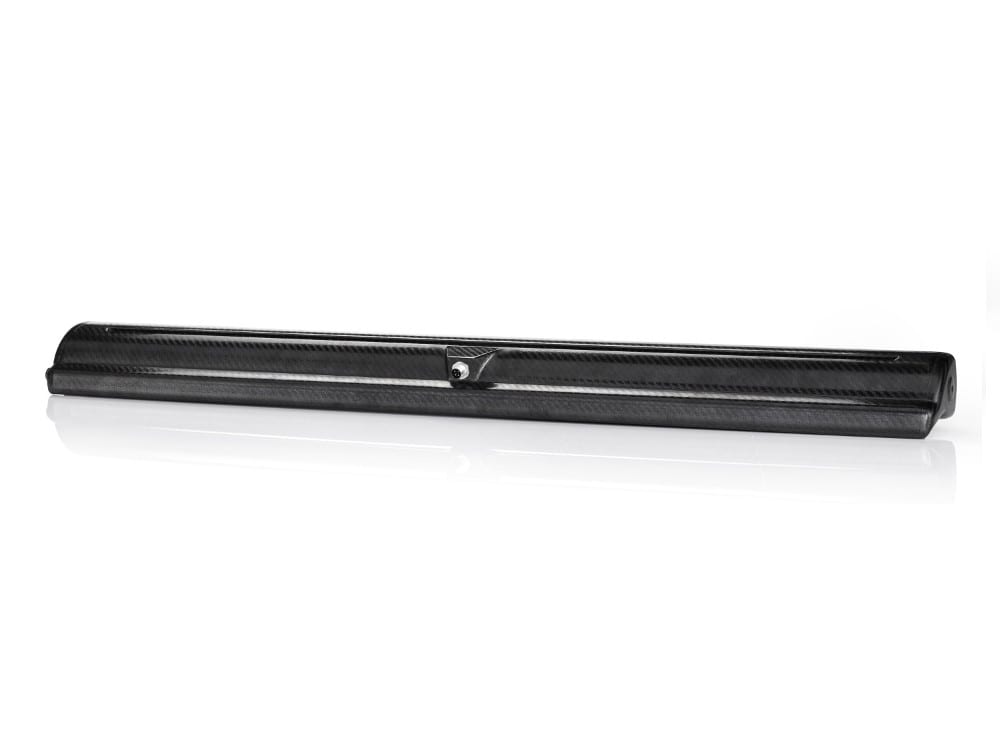

Despite the hugely impressive levels of light output, it is through ground-breaking advances in material design and engineering that the Carbon Series really stands apart from all other lighting solutions. A full carbon-fibre housing provides for an ultra-lightweight construction, and a power/weight ratio never seen before in automotive lighting. While extremely durable, Carbon Fibre doesn’t benefit from the same high conductivity of traditional aluminium LED lamps, in this regards particular care has been taken to optimise the heatsink on the underside of the lamp to maximise heat dissipation while keeping weight down and drag coefficient low.

Product Features:

  • Suitable for when regulations specify a limit on maximum number of LEDs in operation
  • Ultra lightweight, carbon-fibre housing
  • Next generation high intensity LED technology to achieve maximum range
  • Carefully selected LED colour temperature maximises sharpness and definition
  • Compatible with Lazer’s Reeded Lens to modify the beam pattern
  • CAE optimised heatsink requires minimal airflow to maintain 100% light output
  • Electronic thermal management
  • Low profile design for improved aerodynamic performance
  • Fitted with male/female Binder connector
  • Supplied with Universal Single Lamp Mount and Neoprene Impact Cover
  • ‘Unbreakable’ polycarbonate lens
  • IP67 watertight
  • 5-year warranty
  • Designed & manufactured in Britain


Voltage Range 9-32V
LED Life 50,000 hours
Optical Efficiency 96%
Weight 1350 gr
Total Luminous Flux 18040 Lm
Number of High Output LEDs 16
Power Consumption 176 Watts
Current Draw (at 14.4V) 12.2 Amps

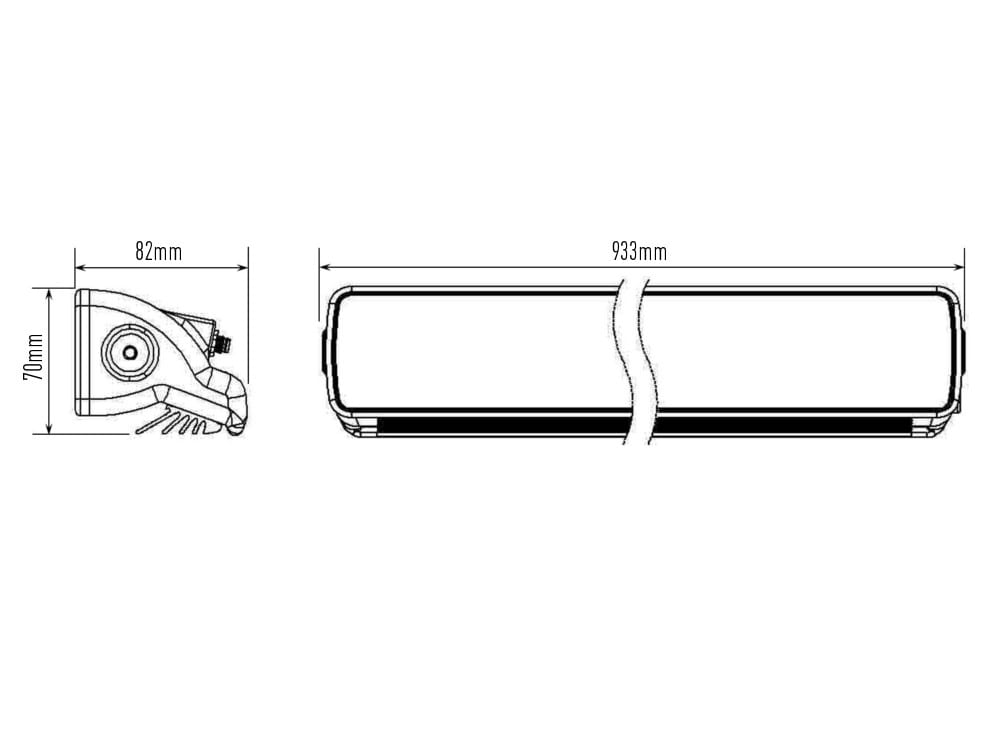

Width 933 mm
Depth 82 mm
Height 70 mm

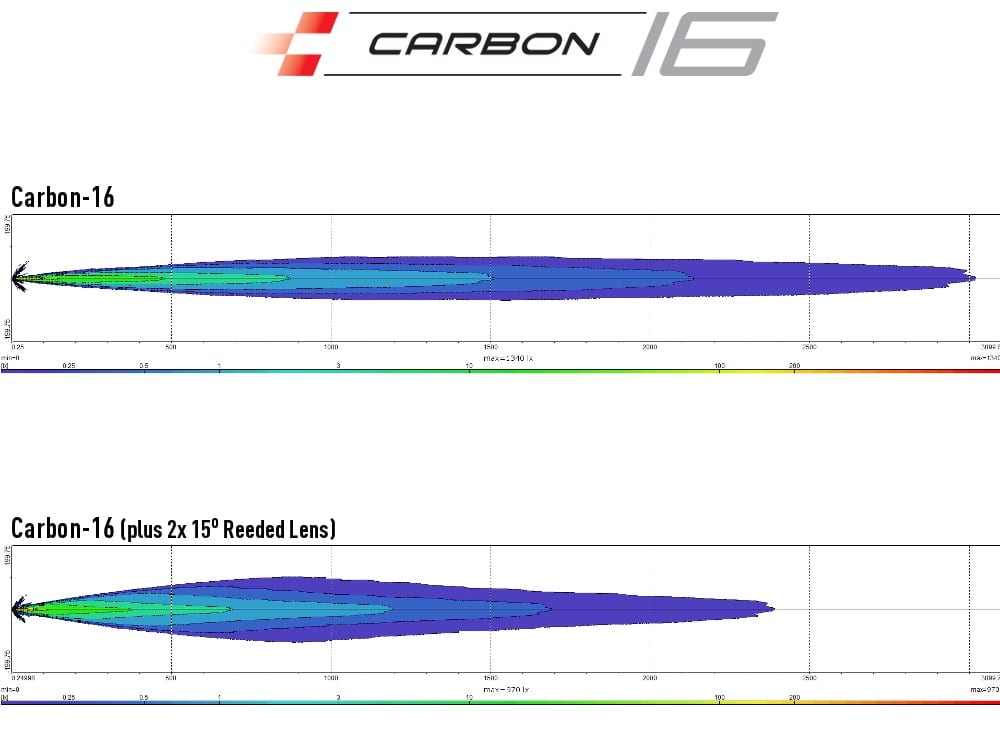

0.25 lx Line 2721 metres
0.5 lx Line 1924 metres
1 lx Line 1361 metres
3 lx Line 786 metres


Additional information



Reeded Lens

No, Reeded Lens (Variable) – Horizontal – Carbon Series, Reeded Lens (15 Degrees) – Horizontal – Carbon Series, Reeded Lens (30 Degrees) – Horizontal – Carbon Series
