Lazer Lamps 4-Way Rally Lamp Pod

£5,280.00£5,496.00

Product Code: 0064-4WBP

Shipping may take up to 2-10 days

Clear

Description

Description:

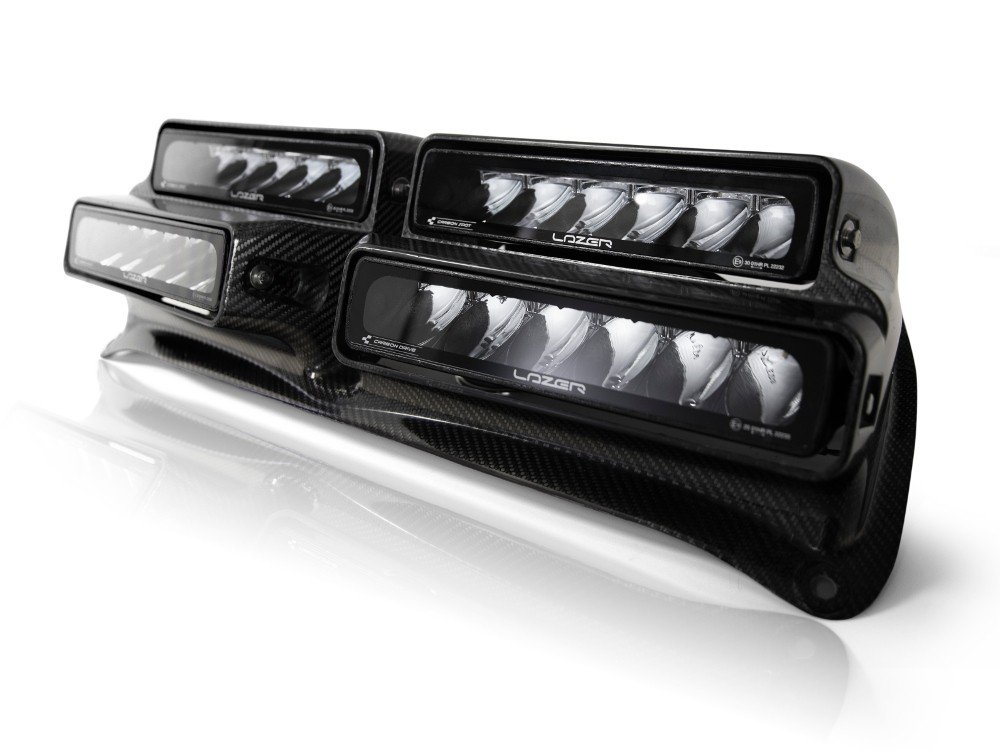

Taking rally car lighting solutions to the next level, the 4-way Rally Lamp Bonnet Pod from Lazer Lamps comprises 2x Carbon-6 Spot (3D Material) and 2x Carbon-6 Drive (3D Material) high performance LED driving lights, pre-mounted within an aerodynamic, lightweight Glass & Carbon-fibre composite pod, designed and engineered to match the shape of the 2019 Ford Fiesta.

With the complete system weighing just 3kg, the 4-way Bonnet Pod affords substantial weight saving gains over traditional lamp pods, while delivering lighting performance unrivalled considering the lamps’ size and low power consumption. Moreover, the products are designed, engineered, and manufactured in the UK to the most exacting standards, and benefit from input received from the very highest levels of professional rally motorsport.

The Carbon-6 Spots provide for exceptional long-range visibility, complimented by the Carbon-6 Drives which deliver a spread of light crucial to having the confidence to drive faster, and safer. Constructed using 3D printed Carbon-Fibre & Nylon composite material (CF-PA12) material, the lamps all profit from E-mark certification, a mode enabled via a touchscreen Dashboard Controller (available from Dec’19). Additionally, the Dashboard Controller allows for operation of the following functions: E-Boost Mode, Adaptive Mode, Fog Mode, and Corner Lighting (requires LH/RH Corner Pod system). For more information visit the Dashboard Controller product page.

Without the Dashboard Controller, the lamps are programmed to just operate in E-Boost mode, where the lamps combine to produce 27,040 lumen. With the colour temperature of the LEDs carefully selected at 5000k to improve sharpness and definition of the road and objects ahead, nothing has been left to chance with regards performance or build quality.

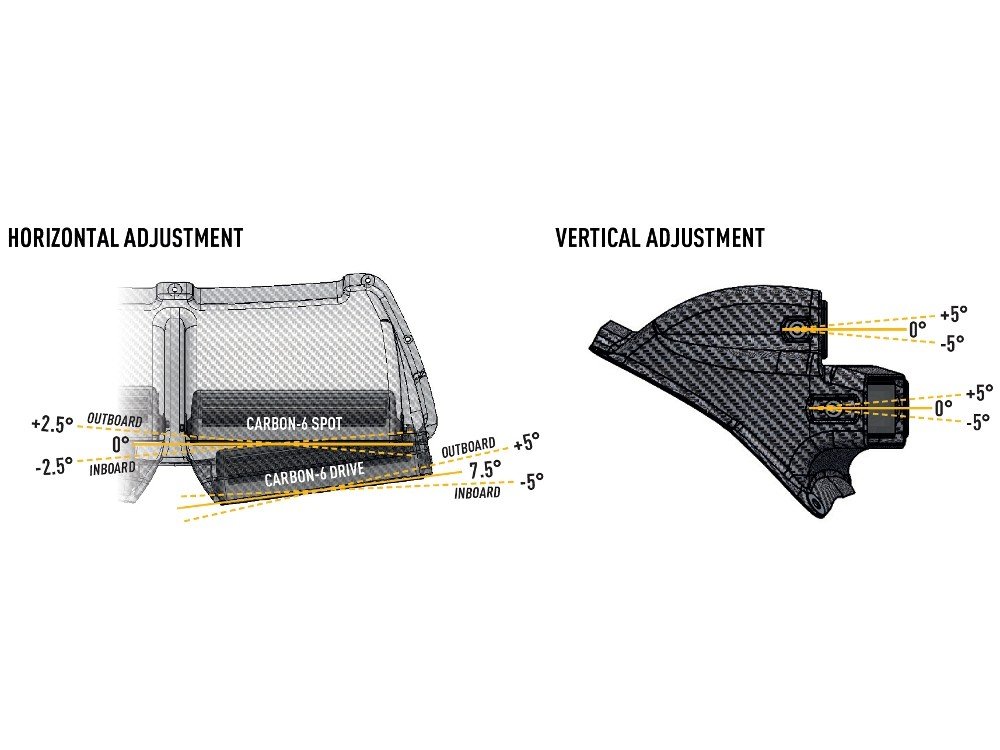

The bonnet pod, made from carbon-fibre with glass laminate layers (to ensure compliance with some FIA regulated series), comes with the lights pre-mounted. The pod allows for quick and easy vertical adjustment of the lights +/-5deg, alongside <2deg outboard adjustment permits more left/right spread of light.

The 4-Way Rally Lamp Bonnet Pod is recommended for use with Linear-6 Elite corner lights, mounted in a horizontal orientation. A bespoke pod exists for Fiesta R5 customers, for all other customers it is recommended to mount the corner lights with our Aluminium Side Bracket Kit. Where the requirement is for corner lights mounted in a vertical orientation, we would recommend our ST4 Evolution high performance spotlights.

Product Features:

  • Pre-mounted 4x Carbon-6 ‘Spot’ and ‘Drive’ high performance driving lights
  • Ultra-lightweight carbon-fibre with glass laminate bonnet pod
  • Optimised for Ford Fiesta R5 – spacer kits in development for other vehicles
  • 4 different lighting modes operated via Dashboard Controller (from Dec’19)
  • Compatible with LH/RH Corner Pods
  • Road-legal in accordance with FIA regulations (for some rally series)
  • Low profile design for improved aerodynamic performance
  • Bonnet fixtures not included
  • Carefully selected LED colour temperature maximises sharpness and definition
  • Electronic thermal management
  • ‘Unbreakable’ polycarbonate lens
  • IP65 splash-proof
  • 5-year warranty
  • Designed & manufactured in Britain

Specification:

SPOT DRIVE
Voltage Range 9-32V 9-32V
LED Life 50,000 hours 50,000 hours
Weight 440 gr 440 gr
HIGH BEAM FUNCTION
Total Luminous Flux 6760 Lm 6760 Lm
Number of High Output LEDs 6 6
Power Consumption 69 Watts 69 Watts
Current Draw (at 14.4V) 4.8 Amps 4.8 Amps
DIMENSIONS
Width 308 mm 116 mm
Depth 82 mm 82 mm
Height 70 mm 70 mm

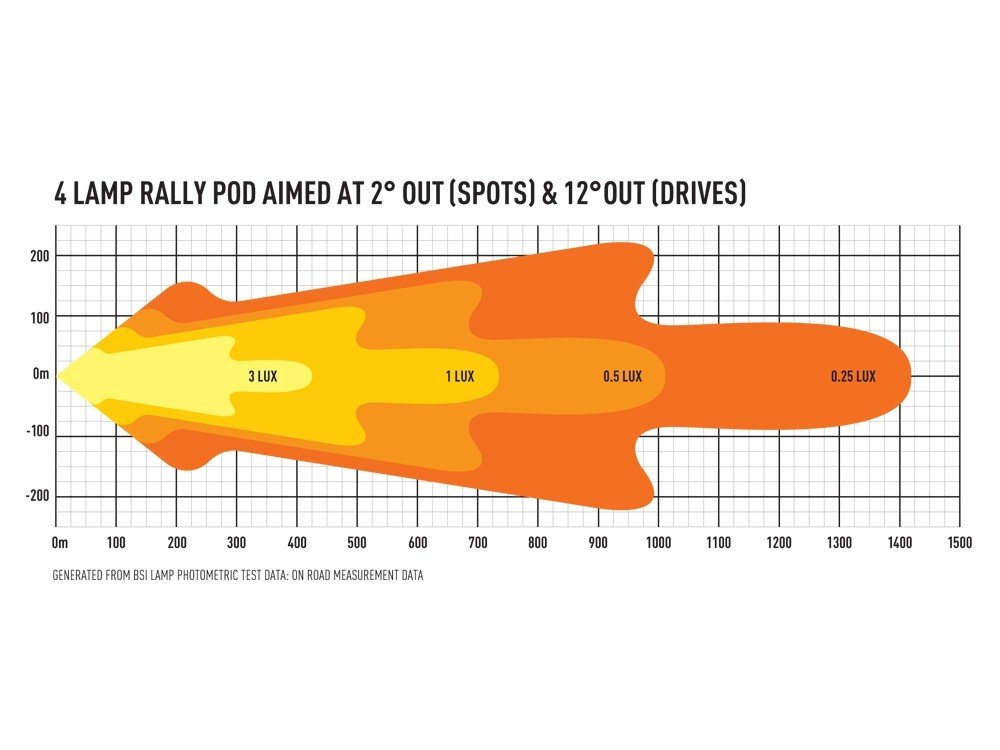

PHOTOMETRIC DATA
0.25 lx Line 1159 metres 1037 metres
0.5 lx Line 820 metres 733 metres
1 lx Line 580 metres 518 metres
3 lx Line 335 metres 299 metres

Video’s:

Additional information

4-Way Bonnet Pod (for Ford Fiesta R5)

4-Way Bonnet Pod (for Ford Fiesta R5 Mk1), 4-Way Bonnet Pod (for Ford Fiesta R5 Mk2)

Electrical Wiring

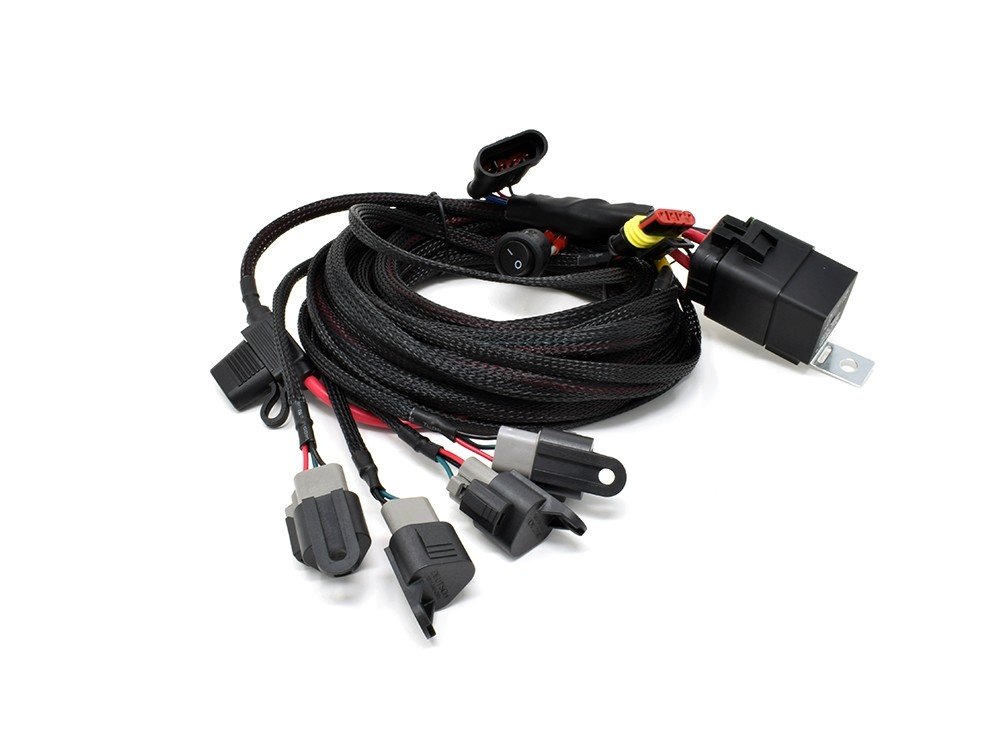

None, Four-Lamp Carbon Harness Kit with Switch

Dashboard Controller

None, Dashboard Controller for 4-Way Bonnet Pod
