Description
Description:

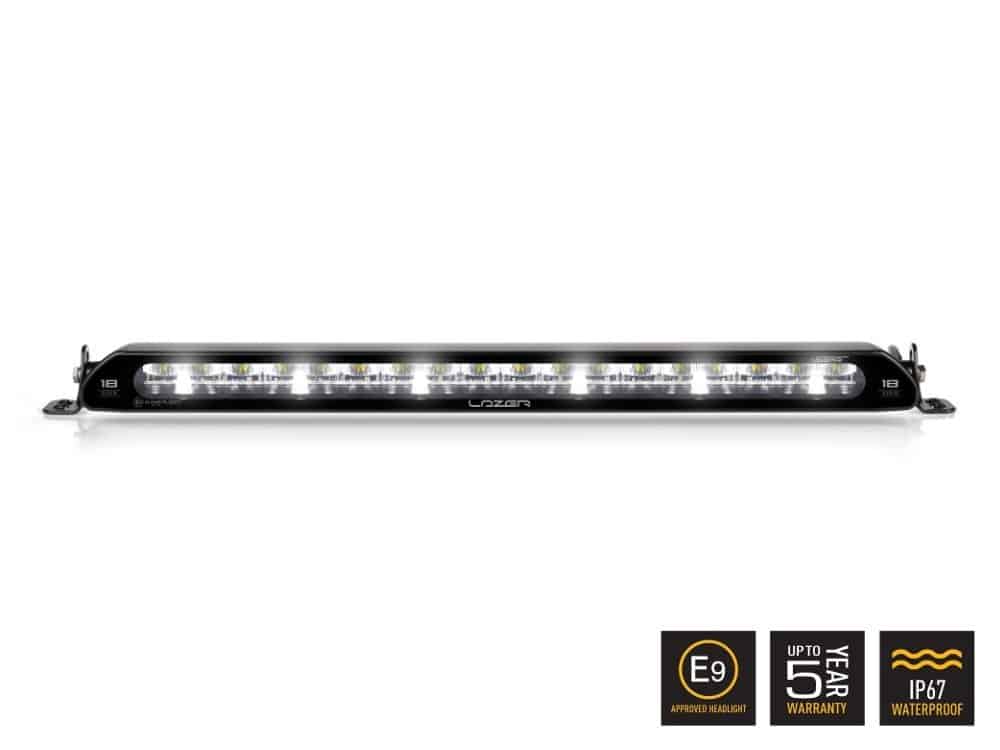

The ultimate low profile auxiliary LED lighting for the road and passenger car market, is now setup for the commercial vehicle market with added integrated position light functionality built into a variant of the lamp. The Linear-18 Elite with Position Light provides astonishing levels of light output, optimised for everyday road use, and with the position light functionality now provides for a distinctive appearance guaranteed to set your vehicle apart day or night.
The position light function comes from 6 diffused optics contained within the lamp, providing for a clean, unique appearance that impresses from the moment they are turned on.

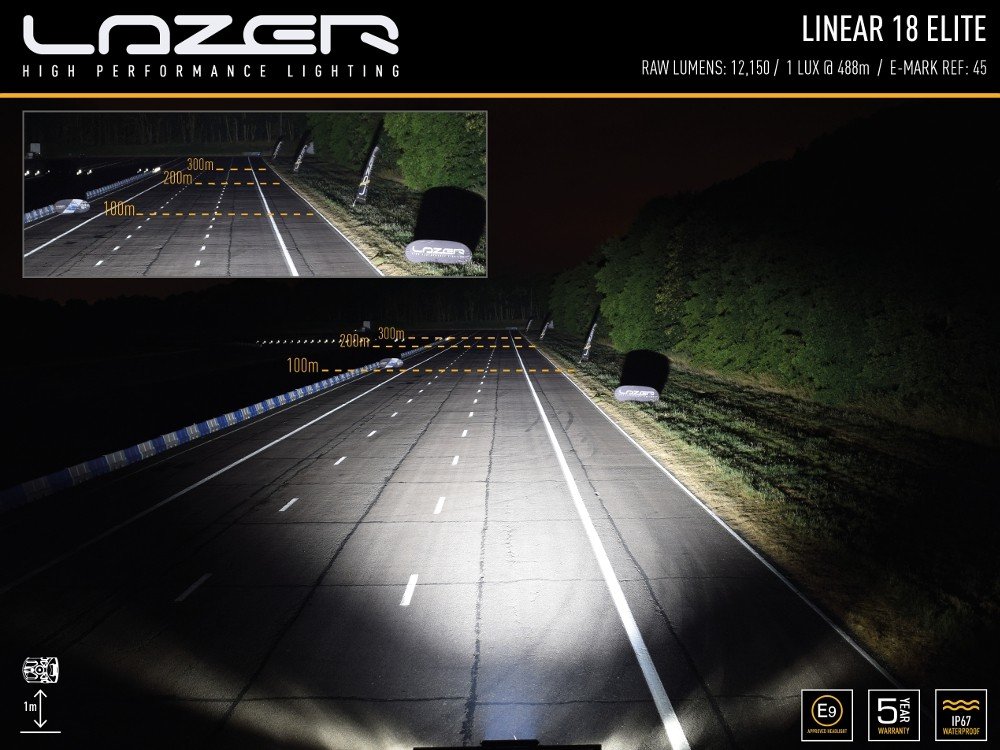

The superior high beam driving light performance associated with the Linear-18 Elite is borne from a combination of 36x highly efficient 3W LEDs, the same as used in our WRC lighting solutions, which together deliver 12,150 lumens, and 1 lux to 488m. ECE approved the lamp has an E-mark reference of 45, close to the permissible limit of the light intensity, which when considering the lamp weighs a little over 1kg and has power consumption of just 126W, measures just 532mm wide and 40mm in height, and it is impressive performance for such a sleek, low-profile lamp.
While this foundation of the Linear Elite’s lighting performance appears good on paper, it is through advances in our material and electronics design, that the Linear Elite really stands apart. In particular, the vacuum-metallised high-reflectivity optics carefully designed and engineered utilising the latest CAD design and light simulation software, that provide for superior light distribution when out on the road, where it really matters. A reduced vertical spread enables more light to be directed to the sides of the road, while the high intensity of the LEDs ensures enviable distance illumination.
The clean design of the Linear range provides for a premium look and feel, that also ensures minimal impact on airflow around any installation. The supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners (included as standard), means the light will stay safe and secure.
The Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

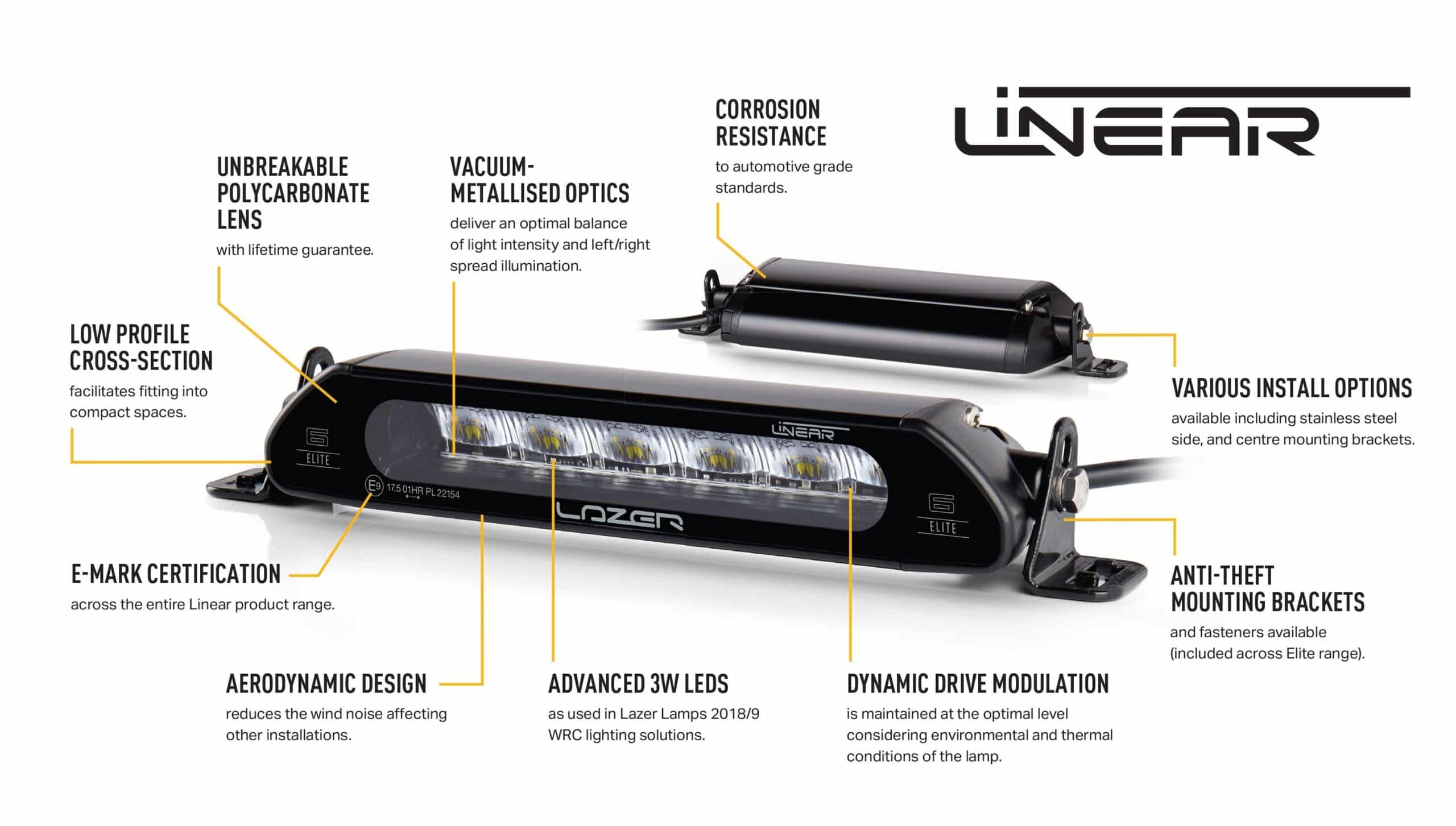

Product Features:
- Combination of highly efficient 3W ‘premium bin’ LEDs
- Integrated position/side light functionality
- Vacuum-metallised optics deliver wide spread of light
- Flexible mounting options – anti-theft mounting brackets included
- Sleek, low profile design facilitates installation
- Electronic thermal management
- ‘Unbreakable’ polycarbonate lens
- ECE approved for on-road use
- IP67 watertight
- 5 year warranty
- Supplied with male/female connectors (pre-wired)
- Designed & manufactured in Britain
Specifications:
Voltage Range | 9-32V |
LED Life | 50,000 hours |
Weight | 1090 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 12150 Lm |
Number of High Output LEDs | 36 |
Power Consumption | 126 Watts |
Current Draw (at 14.4V) | 8.8 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
ECE Reference | 45 |
Position Light | ECE R7 |

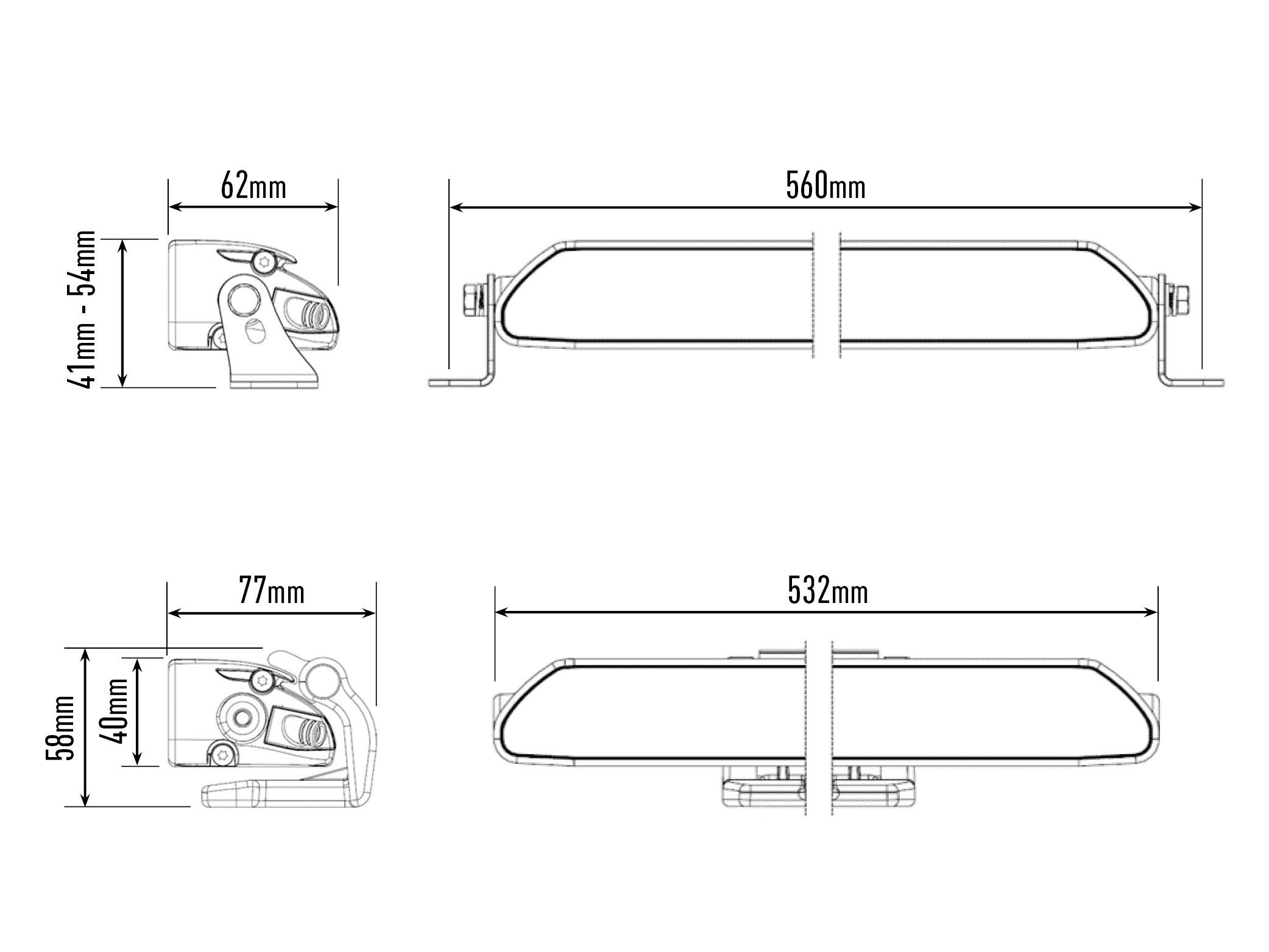

DIMENSIONS | |
Width | 532 mm |
Depth | 62 mm |
Height | 40 mm |

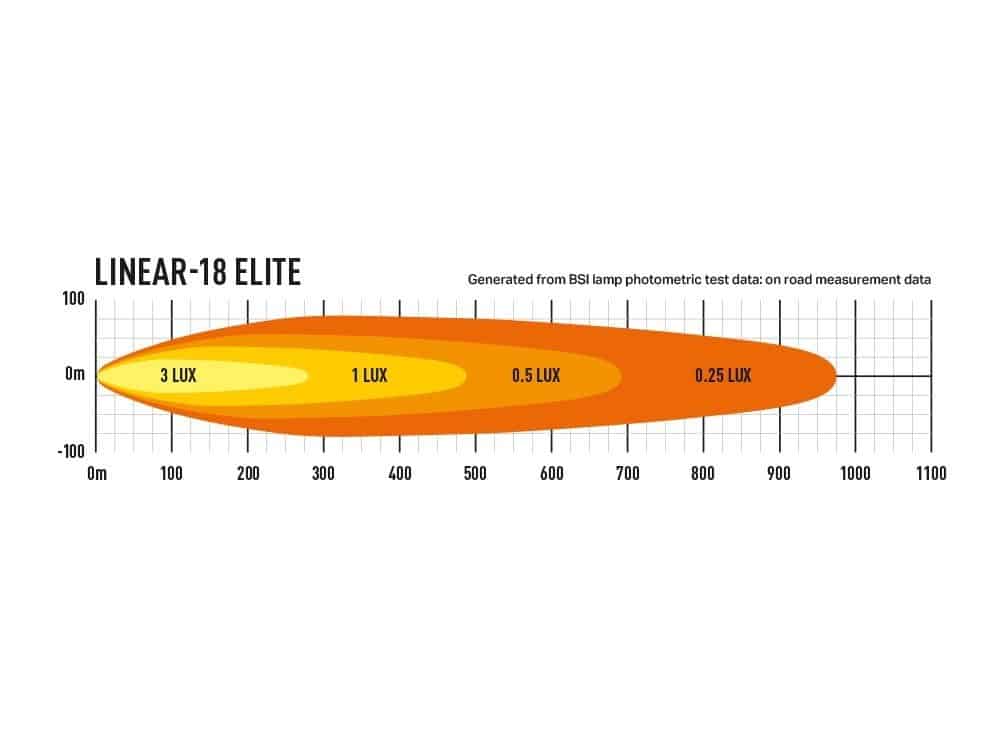

PHOTOMETRIC DATA | |
0.25 lx Line | 975 metres |
0.5 lx Line | 690 metres |
1 lx Line | 488 metres |
3 lx Line | 282 metres |
