Lazer Lamps Linear-6


What’s included:
– x1 Linear-6 LED Lamp
– x1 Side Mount (1126k)
– x1 Wiring and Installation Instructions

Product Code: 0L06-LNR

Shipping can take up to 2-7 days

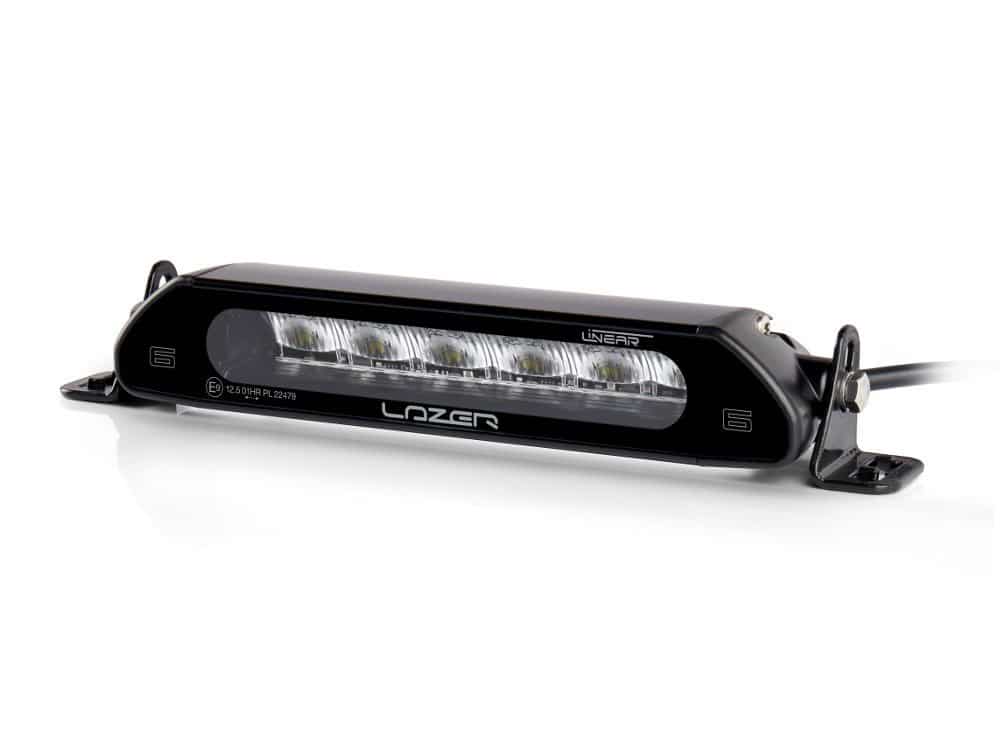

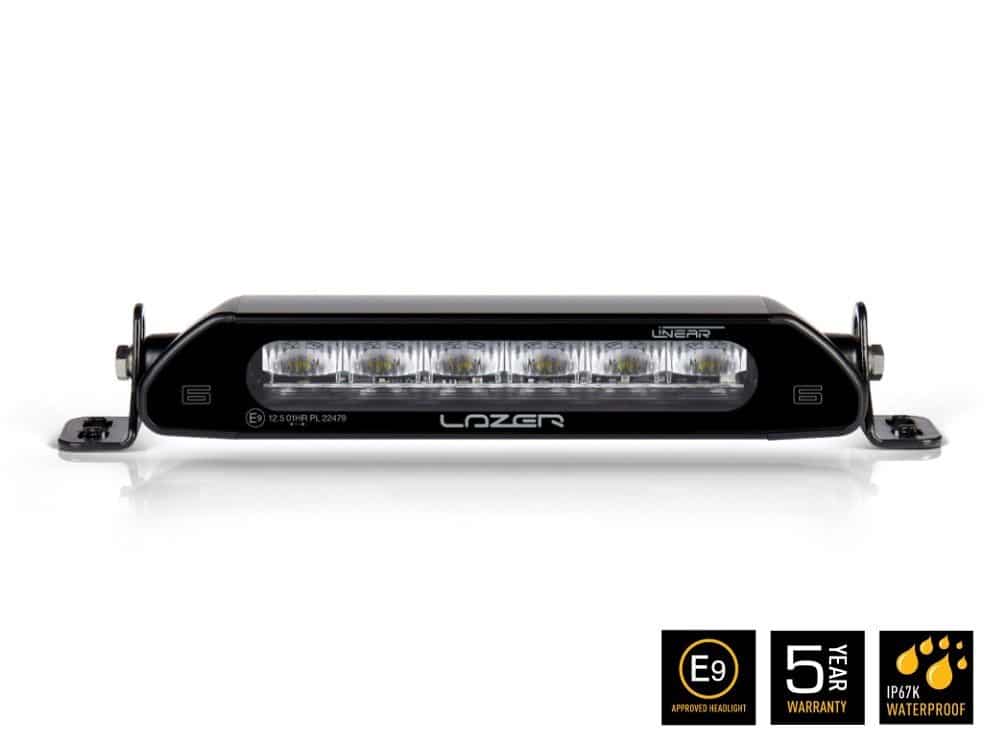

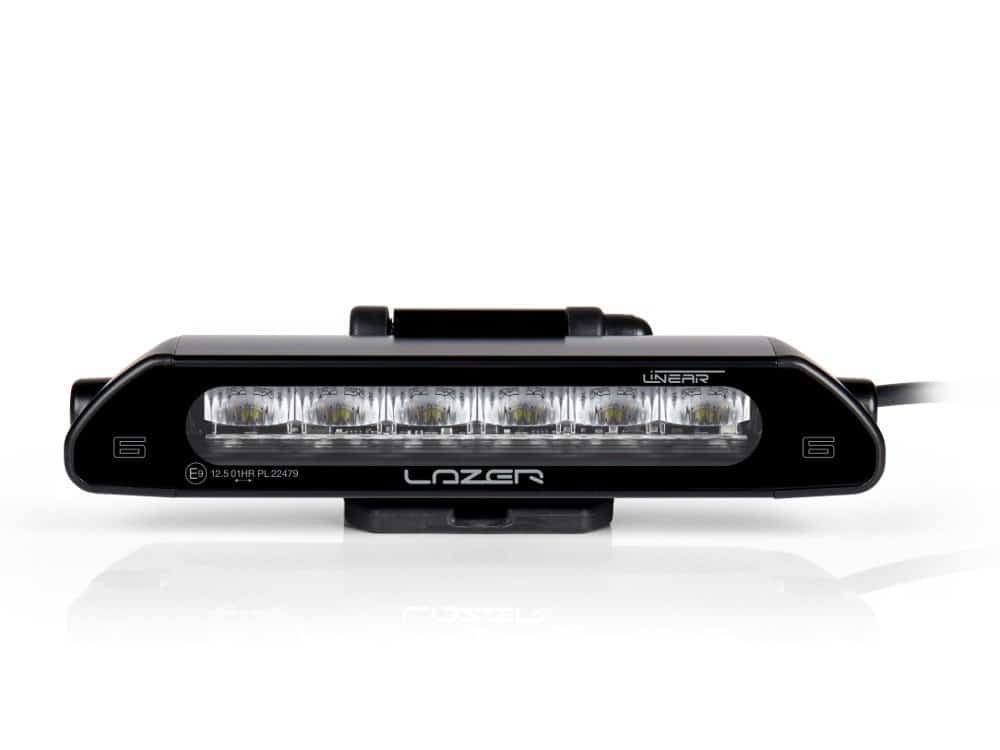

At just 232mm in length, and with an aluminium body measuring just 40mm in height, and weighing less than 500grams, the Linear-6 is an auxiliary LED light that can be subtly integrated onto any everyday road vehicle without compromising the vehicle aesthetics. A borderless ‘unbreakable’ polycarbonate front lens, featuring hardcoat lacquer, allows for improved aero performance and prevents build-up of ice/snow/dirt that might otherwise interfere with the light distribution. Automotive grade corrosion resistance, alongside stainless steel brackets and fasteners, ensures the high-end styling of the lamps themselves stays in prime condition for many years to come.

Where the requirement is for an economical auxiliary lighting solution, that still provides for superior high beam lighting performance when compared to any OE headlamps, then the Linear-6 delivers. Like all Lazer products, the lamp is manufactured in the UK to exacting standards, with the build quality and performance assured, and backed up by our comprehensive 5-year warranty.

The Linear-6 utilises highly efficient 3W LED technology, which combine to deliver 2,250 lumens, and 1 Lux to near 250m; impressive considering the lamp only consumes 21W and with a current draw of 1.5Amps. The light distribution can be best described as ‘wide’ which taking nothing away from the enviable distance illumination, does provide for a comfortable left/right spread of light, with a comparatively lower up/down spread (when compared to the equivalent ST or Triple-R product), that makes the Linear-6 especially well suited to lower install positions, such as vehicle grille or number plate mounting.

Product Features:

  • Economical solution for everyday road use
  • Vacuum-metallised optics deliver wide spread of light
  • Reduced up/down spread of light suits lower mounting positions
  • Highly efficient 3W LED technology
  • Sleek, low profile design facilitates installation
  • Electronic thermal management
  • ‘Unbreakable’ and hardcoated polycarbonate lens
  • ECE approved for on-road use
  • IP67 watertight
  • 5 year warranty
  • Supplied with male/female connectors (pre-wired)
  • Designed & manufactured in Britain


Voltage Range 9-32V
LED Life 50,000 hours
Weight 495 gr
Total Luminous Flux 2250 Lm
Number of High Output LEDs 6
Power Consumption 21 Watts
Current Draw (at 14.4V) 1.5 Amps
High Beam ECE R112
ECE Reference 12.5
Width 232 mm
Depth 62 mm
Height 40 mm

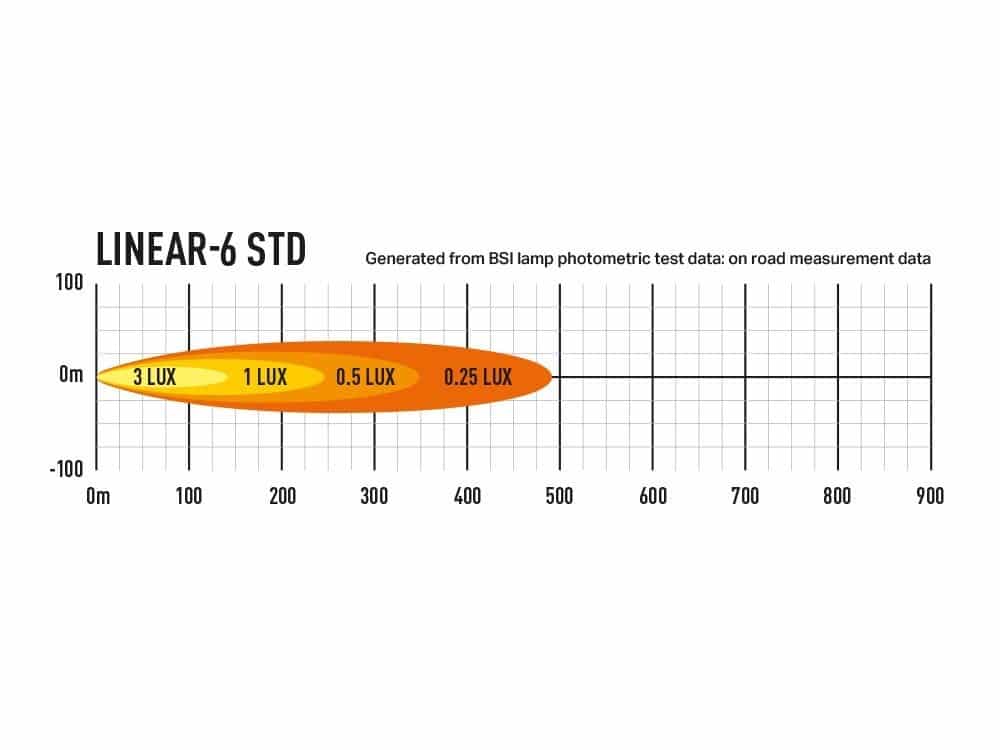

0.25 lx Line 494 metres
0.5 lx Line 349 metres
1 lx Line 247 metres
3 lx Line 143 metres


Additional information



Electrical & Wiring

No, One-Lamp Harness Kit, One-Lamp Harness Kit With Switch, Two-Lamp Harness Kit, Two-Lamp Harness Kit (Long), Two-Lamp Harness Kit With Switch, Two-Lamp Harness Kit With Switch (Long), Four-Lamp Pickup Harness Kit, Four-Lamp Harness Kit With Switch

Mounting Kit

No, Centre Mounting Kit (LINEAR), Anti-Theft Side Mounting Kit (LINEAR)
