Lazer Lamps Utility-45 (2nd Generation)

£126.00

What’s included:
– x1 Utility-45 LED Work Lamp
– x1 Mounting Bracket

Product Code: 00U45-G2

Shipping may take up to 1-2 weeks

Clear

Description

The Utility-45 is a heavy-duty work light upgraded in 2018 to deliver even more visibility, with greater intensity and improved spread of light, facilitating safer and more productive work environments. The 50 lux line, defined by HSE as the effective level of illumination when working outdoors at night, is achieved at 16m distance, with a spread of 10m (mounted at 3m with 20 degree down angle). Combined with design features for maximising functionality and reliability, this is a product that can be relied on to deliver exceptional performance, time after time, whatever the application.

Continual improvement in, and adoption of, the latest and most efficient LED technology means the Utility Series stands apart from other work light solutions. 4 high density LEDs deliver 4,560 raw lumens which is harnessed through ultra-reflective, vacuum-metallised optics designed and engineered in the UK using advanced CAD design and light simulation software. The result – more light distributed over a bigger area, and with the LEDs carefully selected for their colour temperature, proven to maximise definition while reducing fatigue and strain that can come from using higher colour ranges.

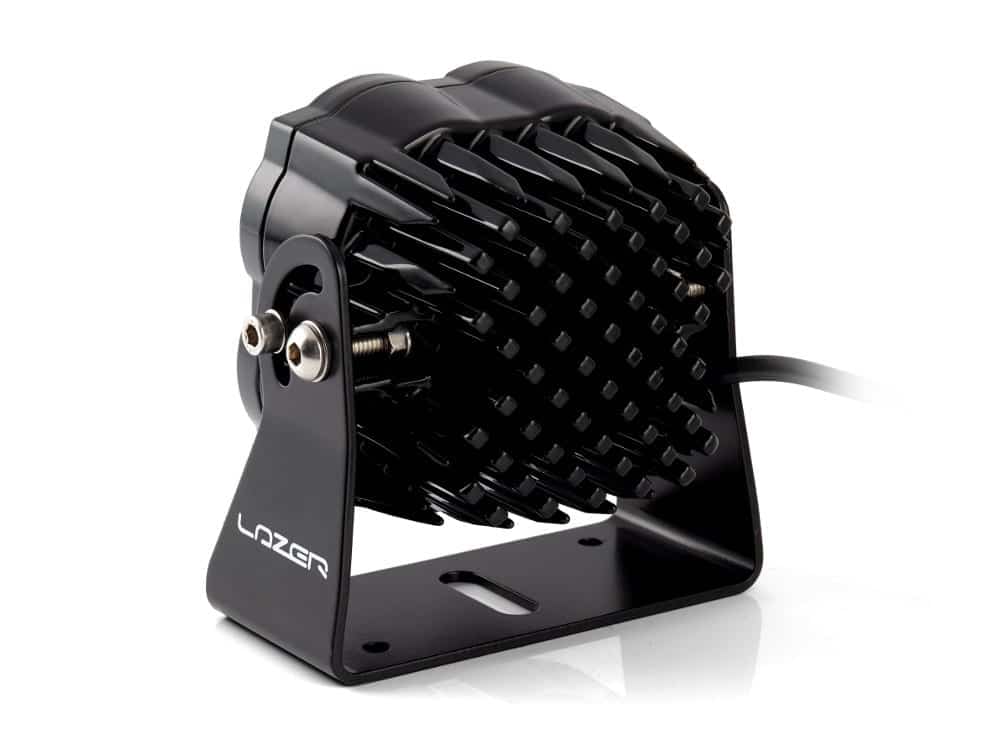

The consistently high level of light output is maintained through an innovative CAE optimised ‘Matrix’ cooling system; the increased surface area ensures heat generated during operation of the lamp is more efficiently dissipated away from the unit. This process allows the light output to be maximised for longer, simultaneously the Electronic Thermal Management system optimises light output considering the environmental and thermal conditions of the lamp.

Lighting performance aside, the Utility Series is a product built to last, and to withstand the harshest of environments. The polycarbonate lens with hardcoat, is now bonded in place to guarantee water-tightness, and in keeping with the comprehensive 2 year warranty, the lamps have been extensively tested to comply with EU regulations in relation to vibration, shock, and corrosion resistance, and alongside a super-tough construction, advanced electronic design ensures full EMC protection to CISPR-25 (Class 3) standards.

Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-45 is available with a choice of ‘Wide’ or ‘Slimline’ mounting bracket. Lamps with additional cable protection are available where the installation is being made onto trucks required to comply with ADR regulations.

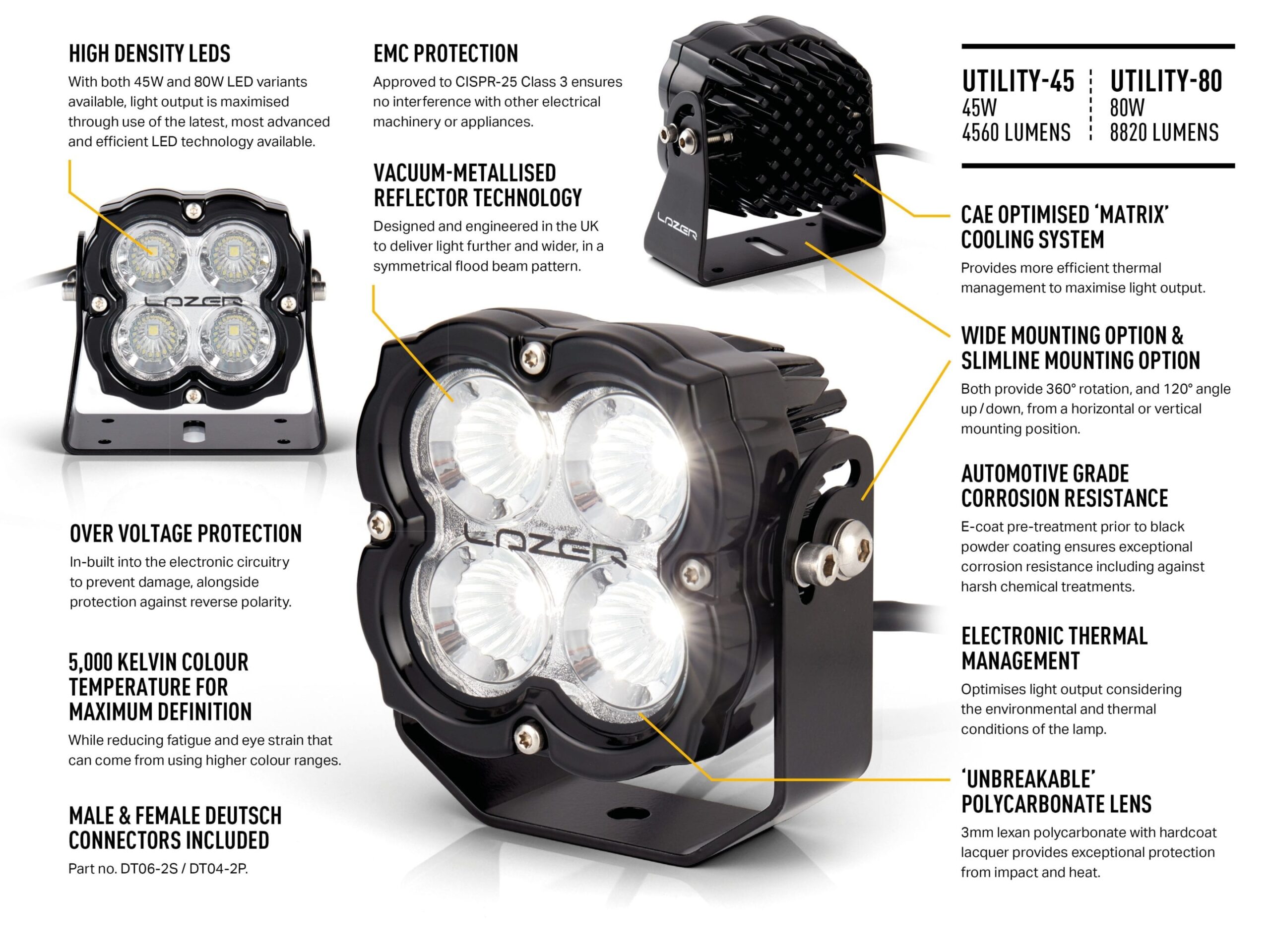

Product Features:

  • Fully ECE approved Work Light (Reg10)
  • 2 Year warranty
  • Made in Britain
  • CAE optimised ‘Matrix’ cooling system
  • Advanced optical design delivers superior lighting performance
  • Electronic thermal management
  • IP67/IP69K watertight
  • Automotive grade corrosion resistance (ISO 9927 / BS EN 60068)
  • 5,000 kelvin light temperature for maximum definition
  • EMC protected – CISPR 25: 2008 (Class 3)Over voltage protected
  • Reverse polarity protected
  • Male and female Deutsch connectors included
  • ADR approved version available
  • Optional Quad Core Dampening System protects against vibration (Wide Mount compatible only)

Specification:

Voltage Range 9-32V
LED Life 50,000 hours
Colour Temperature 5,000 Kelvin
Weight 1260 gr
HIGH BEAM FUNCTION
Total Luminous Flux 4560 Lm
Number of High Output LEDs 4
Power Consumption 45 Watts
Current Draw (at 14.4V) 3.1 Amps
CERTIFICATION
Work Lamp ECE R10
IP Rating IP67 / IP69K
Salt Spray Test ISO 9227 (250H)
EMC Protection CISPR-25: 2008 (Class 3)
OPERATING CONDITIONS
Shock TBC
Vibration (BS EN 60068) 10Hz-2000Hz, 10gn
Operating Temperature -40deg C … +90degC

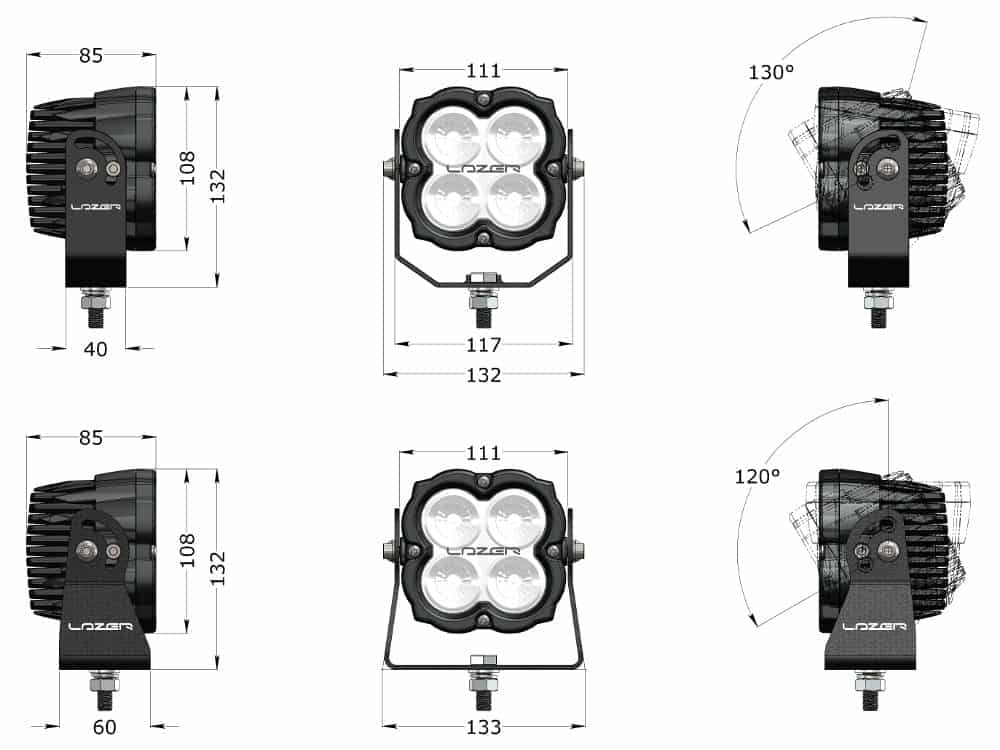

DIMENSIONS
Width 110 mm
Depth 85 mm
Height 108 mm

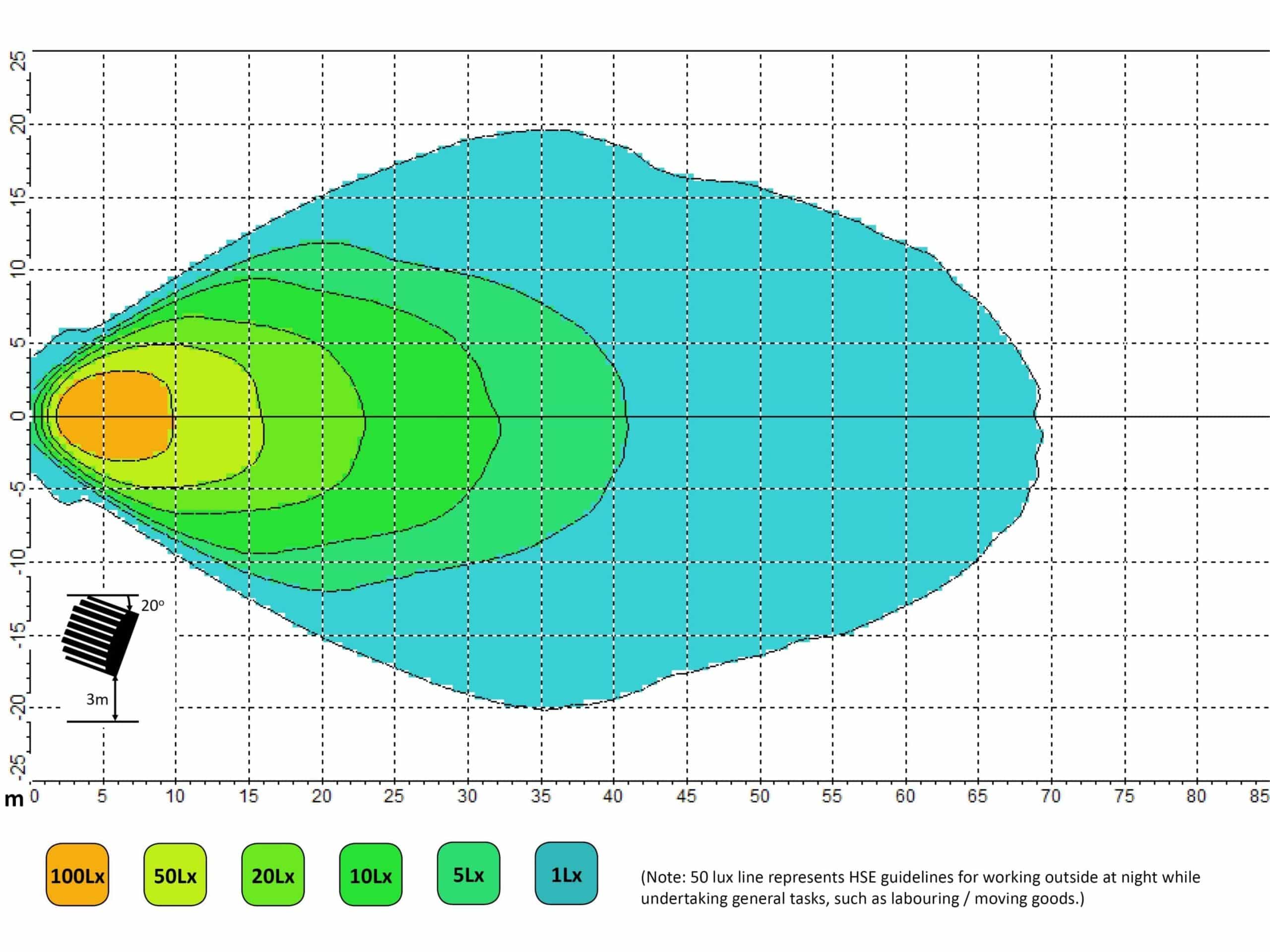

PHOTOMETRIC DATA
1Lx Line @ 69m
5Lx Line @ 41m
20Lx Line @ 23m
50Lx Line @ 16m*

* – 50Lx represents HSE guidelines for effective illumination when working outdoors at night.

Additional information

Utility-45 (2nd Generation) Mount Option

Utility-45 (Gen 2) – With Slimline Mount, Utility-45 (Gen 2) – With Wide Mount
