Revo Carbon Series | Airbox Lid & Turbo Hose Kit

£418.95

The Revo Carbon Lid and turbo inlet hose have been designed and engineered to directly replace the stock air box lid, pipe and elbow found in vehicles with the 1.8 and 2.0 TSI engines with an IHI turbo. The Revo Carbon Lid offers a high-quality replacement, with its contoured design it not only just aesthetically pleasing but designed to improve airflow and performance of your vehicle.

Shipping may take up 2-4 days

Description

Revo Carbon Series – Air Box Lid

The Revo Carbon Lid and turbo inlet hose have been designed and engineered to directly replace the stock air box lid, pipe and elbow found in vehicles with the 1.8 and 2.0 TSI engines with an IHI turbo. The Revo Carbon Lid offers a high-quality replacement, with its contoured design it not only just aesthetically pleasing but designed to improve airflow and performance of your vehicle.

Key Features

  • Increased performance & air flow
  • Carbon Series Quality
  • Engineered for both LHD and RHD fitment
  • 16% Larger airbox outlet

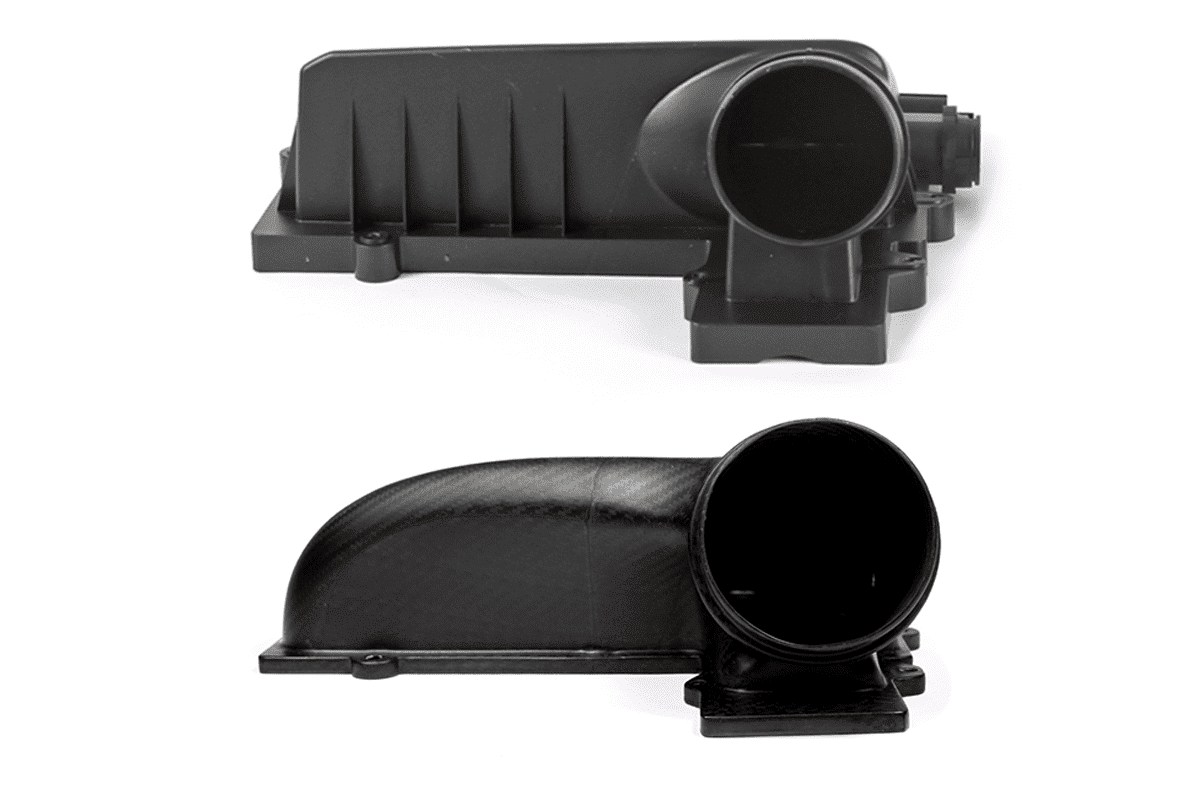

Oem VS Carbon Intake

With ample efficiency for a stock vehicle, the OEM system quickly becomes a choking point for the engine when running Revo Software. The Revo Carbon Lid has been designed to increase airbox volume and promote smoother airflow. The closed air system helps eliminate heat soak whilst directing cold air through its curved design directly to the oversized outlet. With a 16% larger outlet, the Carbon Lid drastically improves the rate at which air can flow, ensuring maximum performance at even Stage 3 specification.

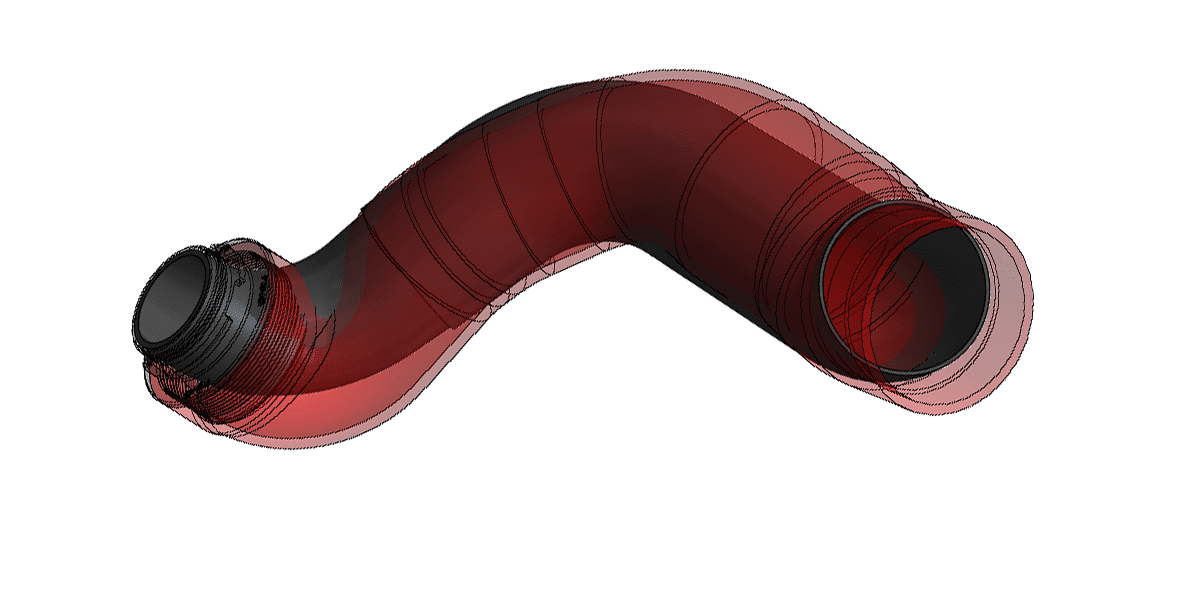

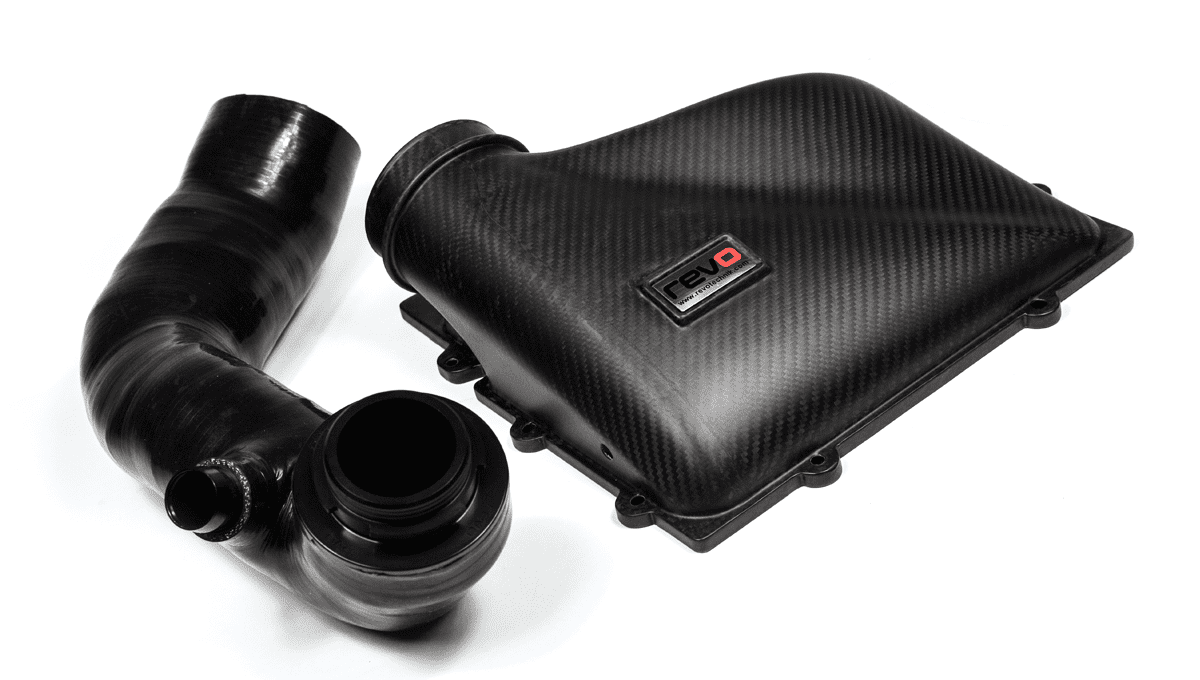

Silicone Hose Design

The Revo Turbo Hose as an increased inner diameter to match the large carbon lid outlet that then gradually tapers to the turbo to optimise airflow, while maintaining the tolerances required to fit both LHD and RHD vehicles. Designed to replace the plastic hose and turbo elbow, this upgrade reduces restriction and maximises smooth airflow improving both power and torque throughout the rev range.







Turbo Inlet

The Revo machined inlet replaces the restrictive elbow found on the IS20/IS38 turbos. The billet aluminium piece securely fits the OE unit using locking tabs and integrated O-rings. With almost double the cross-sectional area compared to other available products, air can stabilise and distribute before a smooth tapered transition to the turbo. Removing the internal steps between components ensures smooth and linear airflow transition between elements, providing uninterrupted airflow and removing any unnecessary turbulence.

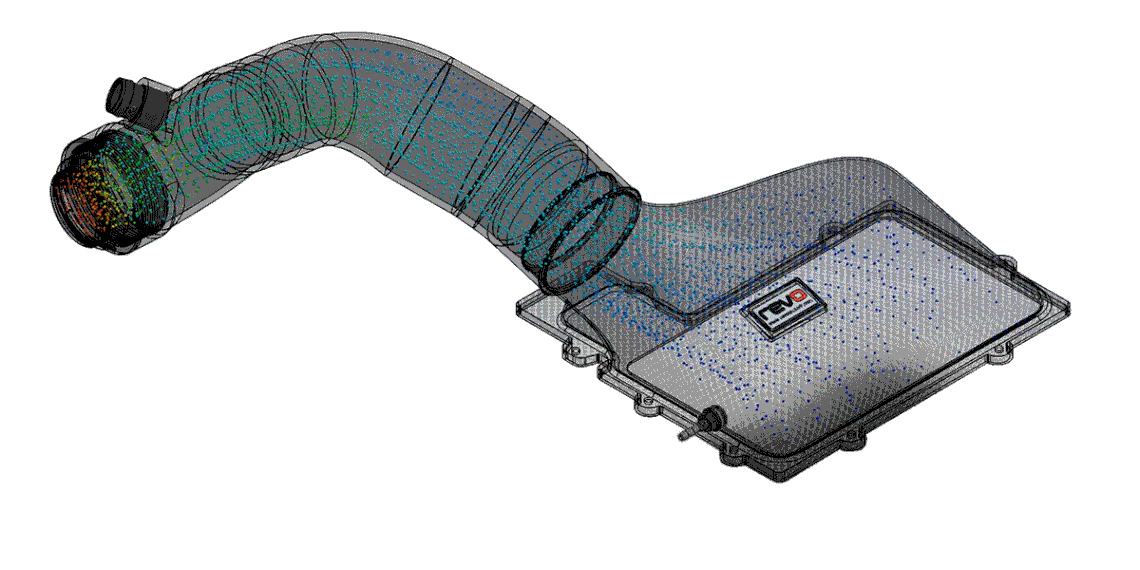

Research And Development

All Revo products are designed and rigorously tested in-house utilising 3D printed prototypes, latest CAD and CFD programs, 4 wheel hub dyno and Revo developed data acquisition software. The Revo Carbon lid and Turbo Inlet Hose allows the Stock IS38/IS20 turbo to run more efficiently, by maximising air volume and minimising turbulence you increase power and torque, especially at the top end of the rev range as highlighted during controlled Dyno testing.

Only Revo

Carefully designed airflow channels built into the carbon airbox lid promote smoother airflow to the 16% increased diameter outlet, improving performance and removing the previous restriction. Keeping a fully enclosed unit keeps intake temperatures to a minimum when combined with the carbon fibre material for increased insulation.

The larger diameter silicone hose maximises the increased airflow from the carbon lid to the turbo and replaces the restrictive OEM plastic turbo inlet elbow with a constant taper that ensures a smooth transition of airflow. The machined inlet has a radius bell mouth matched to the specific internal diameter of the IS20/IS38 turbo allowing the 21% increase in air volume to enter the turbo as smoothly as possible. All the parts together, including the internal steps on the silicone hose, are designed to provide the ultimate in airflow characteristics and provide your vehicle with the hardware required increase performance.

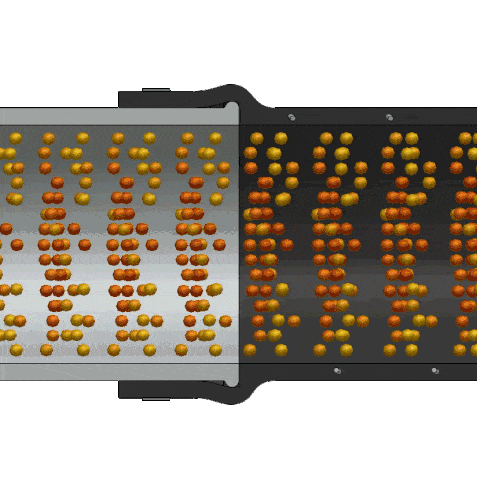

Revo Flush Fit

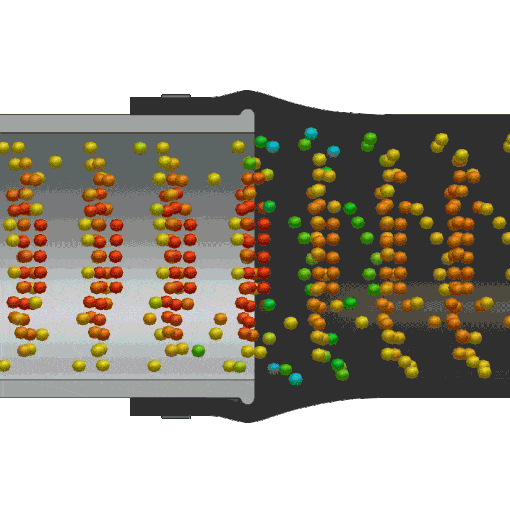

Standard Fitment

Designed to utilise the bottom part of the stock air box, the Revo kit offers an improvement in performance and looks whilst maintaining an OEM quality fitment. This OEM fitment means that all LHD and RHD MQB platform cars with 1.8 & 2.0 TSI share the same air box and can benefit from this upgrade.

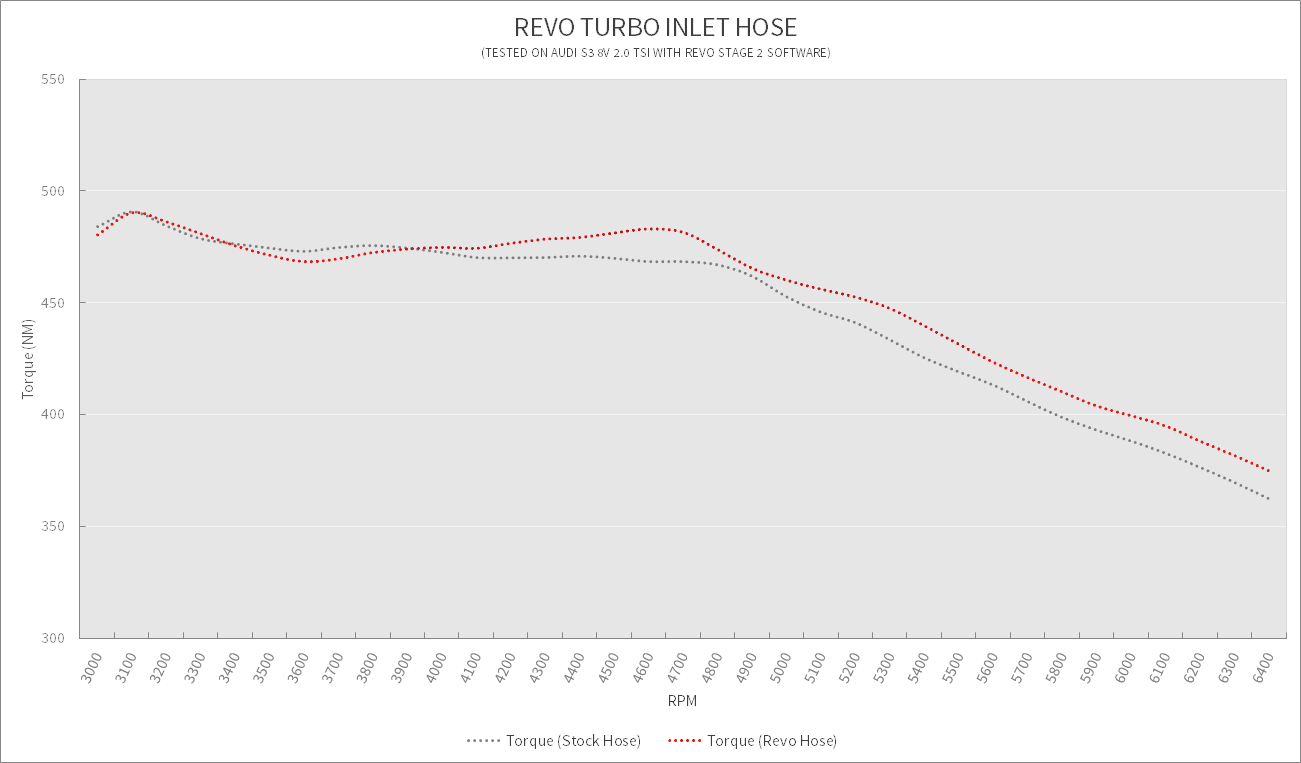

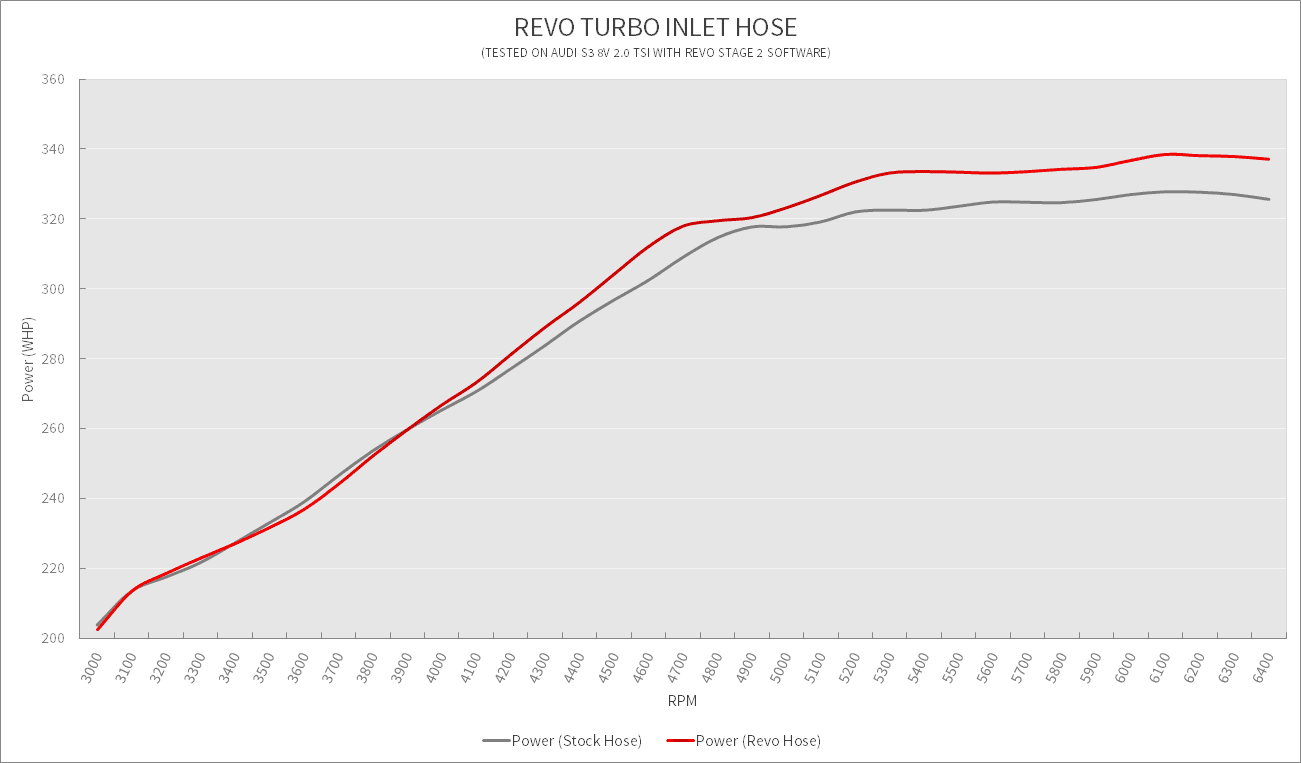

Graphs



Additional information

Intake Option

Intake Carbon Series Airbox Lid & Turbo Hose Kit IS20/38 – Gloss Finish, Intake Carbon Series Airbox Lid & Turbo Hose Kit IS38ETR – Gloss Finish, Intake Carbon Series Airbox Lid & Turbo Hose Kit IS20/38 – Matte Finish, Intake Carbon Series Airbox Lid & Turbo Hose Kit IS38ETR – Matte Finish
