Lazer Lamps LH/RH Corner Rally Lamp Pods


Product Code: 0065-LH / 0065-RH

Shipping may take up to 2-10 days



Designed to fit Ford Fiesta R5 (Mk2) rally cars, the Lazer Lamps Corner Rally Pods utilise our Linear-6 Elite high-performance LED spotlights pre-mounted within lightweight and aerodynamic Glass & Carbon-fibre composite pods. Carefully selected for their superior light output and low-profile design, the light output from the corner pods delivers short to mid-range corner lighting which compliments perfectly the long-range illumination provided by either our 2-Way or 4-Way Bonnet Pods.

With each pod weighing 0.85kg, this is a corner lighting solution which delivers weight saving gains over traditional systems, while simultaneously delivering lighting performance unrivalled considering the lamps’ size and low power consumption. Moreover, the products are designed, engineered, and manufactured in the UK to the most exacting standards, and benefit from input received from the very highest levels of professional rally motorsport.

Each lamp utilises a combination of highly efficient 3W LEDs which delivers 4,050 lumens and 1 lux to over 280m, impressive performance considering each lamp only requires 42W. Carefully selected LEDs, with a colour temperature of 5000k to match our bonnet pod solutions, provide maximum sharpness and definition of the road and objects ahead. E-mark certification on the lamps, coupled with the pods themselves being manufactured from carbon-fibre with glass laminate layers, ensure compliance with most FIA regulated series.

A fine-adjustment mechanism allows for quick and easy vertical adjustment of the lights +/-5deg alongside +/-5deg inboard/outboard adjustment permitting more left/right spread of light.

Where corner lighting is required on a vehicle other than the Ford Fiesta R5, our Universal Single Lamp Mount or Side Mounting Brackets are recommended alternatives to the pods. So long as the lights are mounted in a horizontal orientation, we would recommend the Linear-6 Elite for corner lighting, however where it is necessary to mount the lights in a vertical orientation, we would recommend adopting our ST4 Evolution spotlights.

Product Features:

  • Pre-mounted Linear-6 Elite high-performance driving lights
  • Ultra-lightweight carbon-fibre with glass laminate corner pods
  • Designed to fit Ford Fiesta R5 (Mk2)
  • Compatible with 2-Way and 4-Way Rally Lamp Pods
  • Road-legal in accordance with FIA regulations (for some rally series)
  • Low profile design for improved aerodynamic performance
  • Fine adjustment mechanisms
  • Bumper fixtures not included
  • Carefully selected LED colour temperature maximises sharpness and definition
  • Electronic thermal management
  • ‘Unbreakable’ polycarbonate lens
  • IP67 watertight
  • 5-year warranty
  • Designed & manufactured in Britain


Voltage Range 9-32V
LED Life 50,000 hours
Weight 495 gr
Total Luminous Flux 4050 Lm
Number of High Output LEDs 12
Power Consumption 42 Watts
Current Draw (at 14.4V) 2.9 Amps
High Beam ECE R112
ECE Reference 17.5
Width 232 mm
Depth 62 mm
Height 40 mm

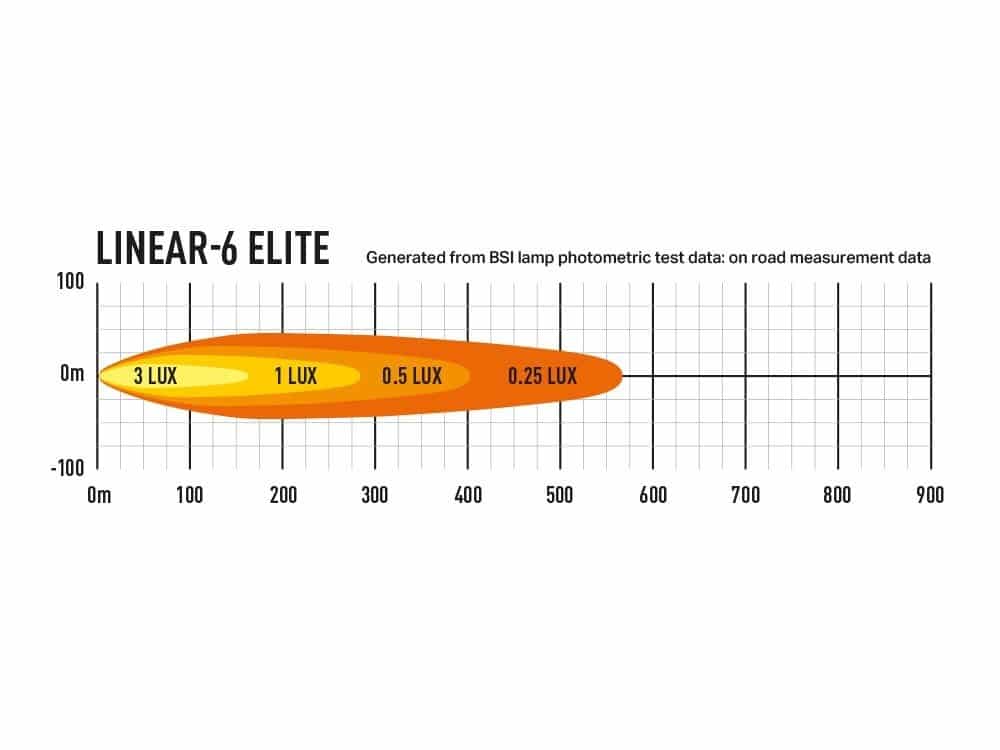

0.25 lx Line 563 metres
0.5 lx Line 398 metres
1 lx Line 282 metres
3 lx Line 163 metres


Additional information

Corner Pod - Left Hand

Left-Hand Corner Pod (for Ford Fiesta R5 Mk1), Left-Hand Corner Pod (for Ford Fiesta R5 Mk2), Left-Hand Corner Pod (for Skoda Fabia R5)

Corner Pod - Right Hand

Right-Hand Corner Pod (for Ford Fiesta R5 Mk1), Right-Hand Corner Pod (for Ford Fiesta R5 Mk2), Right-Hand Corner Pod (for Skoda Fabia R5)

Electrical & Wiring

None, Two-Lamp Harness Kit with Switch
